Large Machining Article Index


Large Machining Simulation

The use of simulation software to verify CNC machining programs is a cost effective method to reduce costs and improve quality. This is especially true when machining large fabrications or machining large castings. In many cases weld repair is not allowed on the work piece and any mistake in machining will result in a high cost of quality and delivery delays.

There are several CNC machining simulation packages available. This is a proven technology. There are steps the user of a CNC machining simulation package must take to tailor the software package to the specific machines, programming practices and tooling of the user.

Large CNC machines frequently have multiple axes that operate following specific rules that are specified by the machine builder or the control manufacturer. The CNC programmers also have company standard practices that are used when programming their machines. All of these rules and common practices are incorporated into a post processor that is specific to the machine, control and company that is using the machine. This post processor is used by the simulation software to insure that the simulation results accurately reflect the actual machining operations. The tooling that will be used for the machining operation must be accurately represented in the CNC machining simulation. This is accomplished by importing solid models of the tooling. Many tooling manufacturers have solid models of their tooling that can be downloaded. In other cases the user must create the solid models. Two other aspects of the machining operation can be modeled by the simulation software. These are the fixture and the physical restrictions of the machine itself. Adding solid models of these aspects will enhance the value of the simulation model.

One benefit of the simulation of CNC machining is preventing programming errors from reaching the shop floor. Errors in CNC machining that reach the shop floor can result in crashes between the work piece, tooling, fixture, and/or machine. Errors can also result in excess machining, insufficient machining, wasted machine moves, and downtime to debug programs. All of these errors can be seen and corrected during the CNC machining simulation.

The CNC simulation software begins with two solid models of the work piece. One model represents the work piece prior to machining (raw) and one model represents the desired finished work piece. The simulation drives the cutting tools around the solid model of the raw work piece. The result is a model of the raw work piece after the CNC program has been run. This model is compared to the model of the desired finished work piece. The areas where the machining does not meet the model of the desired finished work piece are visually identified. This includes areas where too much material has been removed and areas where there has not been enough material removed. The CNC programmer then modifies the CNC program and repeats the simulation until the CNC program produces a part that meets the desired finished product in the simulation.

Simulation is beneficial for all sizes of CNC machining but especially for machining large fabrications or machining large castings. In the case of machining large fabrications or castings the cycle time can be measured in hours rather than seconds as is common with small work pieces. Frequently the cycle time to machine one part can take multiple shifts. If the CNC program is proven out during the first piece run without the benefit of simulation the cost to run a first piece will be double or triple what the cost will be for a first piece run that has gone through the simulation process. Machining large work pieces requires large machines. Complex large fabrications and large castings typically require large machines with five axis capability and head changers. These large multi-axis machines have a high cost per hour to operate. The savings achieved by proving out a CNC program with a simulation package versus proving out the program on the machine is substantial. The typical lot size when machining large fabrications and machining large castings is small. Frequently, the lot size is only one or two pieces. The large savings in prove out cost spread over a small lot size results in a significant savings per piece.

The setup time for machining a large fabrication or a large casting is also a substantial part of the time required to machine the part. It is critical that the machining is correct the first time. Any errors must be corrected on the machine. If the error is found in inspection after the work piece has been removed from the machine, then the work piece will have to be set up on the machine a second time for the repair operation. Given the high cost per hour of large machines, this added setup time and repair time are very costly. Simulation of CNC machining operations and comparison of the raw model as machined to the desired finished model greatly reduces the chance of a machining error that will require repairs.

There are cases where any repair operation requires customer approval of a specific repair procedure. In these cases the work piece sits on the machine while the customer is consulted and a repair procedure is approved. The cost for this repair will include the cost to engage the customer as well as the cost to complete the repair operation. The use of the simulation of CNC machining greatly reduces the probability that this type of error will be made.

Companies that machine large fabrications and large castings are judged by their customers on quality, delivery and cost performance. They must use the technology that is available to provide the highest quality, delivery and cost performance. The use of simulation software to verify CNC machining programs is a cost effective way to prevent errors. It is one of the many tools that K&M Machine-Fabricating Inc. uses to meet and exceed customer expectations. See the Large Machining Simulation video below.

Back to the Large Machining Article Index


Large Machining Capacity Strategy to Meet Changes in Demand

Machining of large fabrications and castings is required by many industries. These include the mining, oil and gas, agriculture, construction and machine tool industries. All of these industries are subject to changes in demand. Manufacturing companies that operate in these industries must be able to adjust capacity, up or down, to meet the market demand if they are going to grow when the market is up and if they are going to control costs when the market goes down. The equipment and infrastructure that is required for large machining is expensive and subject to a long lead time to install. This equipment has a long useful life after it is installed. One strategy used by many successful industrial companies is subcontracting of large machining work to meet changes in demand. The current boom in the production of natural gas and oil in the US, the rapid increase in the demand for supporting large machining capacity, and the use of outsourcing by successful companies is a good case study of the application of this strategy.

Horizontal drilling and hydraulic fracturing drilling techniques were developed in Texas after 2000. Since 2004 the production of oil products in the United States has increased 56%. The United States currently produces 12.9 million barrels per day of oil products, leading Saudi Arabia which produces 11.6 million barrels per day. (Source Wall Street Journal 10-15-14). Hydraulic fracturing uses high pressure pumps to force mixtures containing sand into the well. This high pressure and abrasive fluid result in fast wear and short life for the components of the high pressure pump. The high pressure component subject to this short life is the fluid end. The rapidly increasing production of oil and gas in the US and the use of higher pressures and more abrasive fluids have led to rapid growth in the demand for fluid end machining.

Fluid ends are manufactured by many OEMs and supporting companies in the oil and gas industry. The number of companies designing fluid ends and the variety of applications of fluid ends results in many design variations. There are some commonalities in the designs. The majority of fluid ends are made from steel forgings. Fluid ends can require 100 hours of machining time to go from the raw forging state to the finish machined state ready for assembly. The machining operations are divided into stages.

Stage one is the rough machining of the forged blocks. A typical forged block is 270 inches by 25 inches by 20 inches in size and weighing roughly 40,000 pounds. At this stage there is high stock removal and requirements for equal stock removal on each side and a good surface finish. The surface finish is required for subsequent UT (Ultrasonic inspection) of the rough machined block to insure there are no material defects. Figure 1 is an example of a stage one forged block before and after machining. Figure 2 is an example of a large CNC machine during stage one machining.

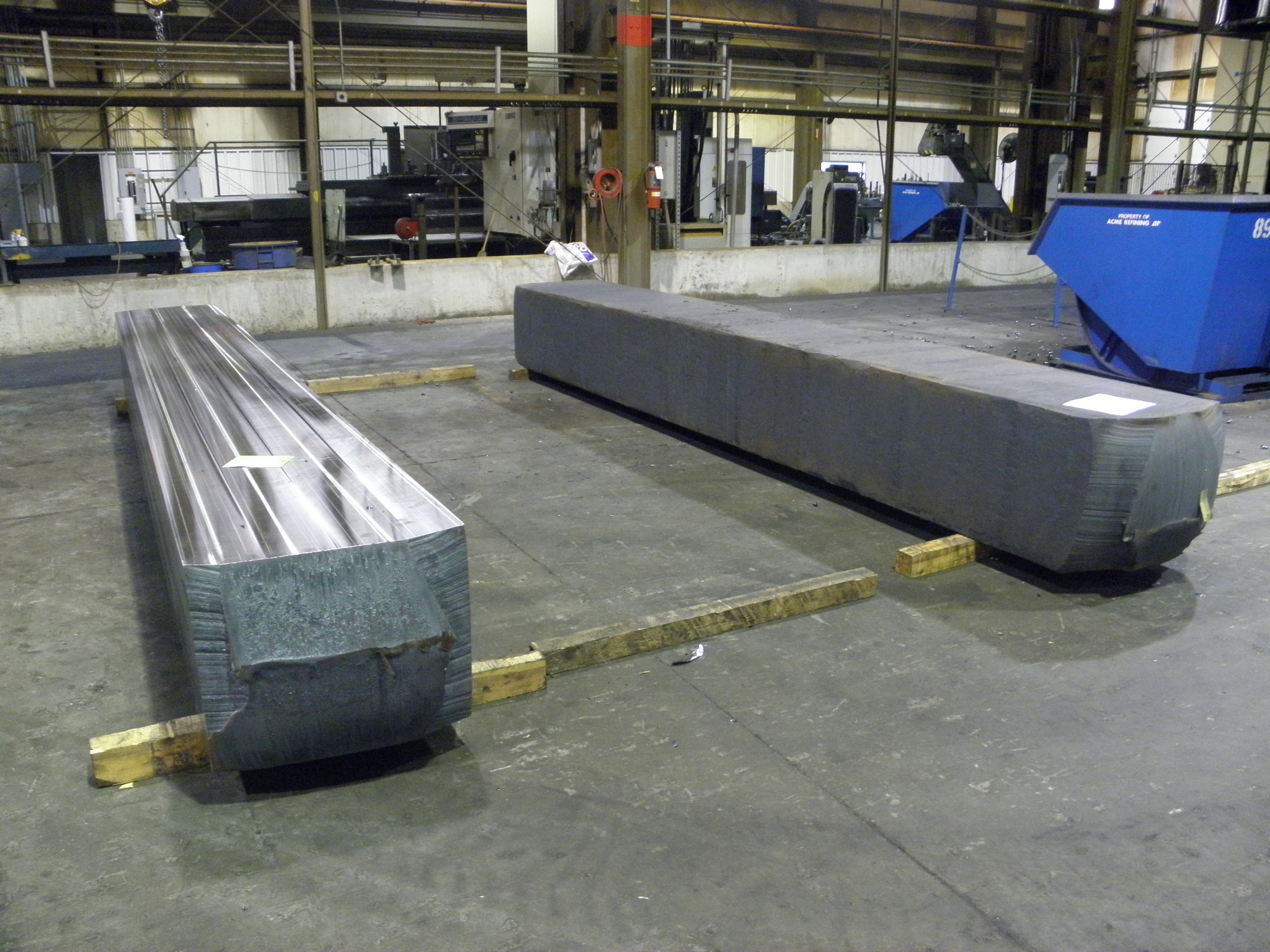

Large CNC machining of forged fluid end block - before and after machining
Figure 1 – Forged Block Before and After Machining

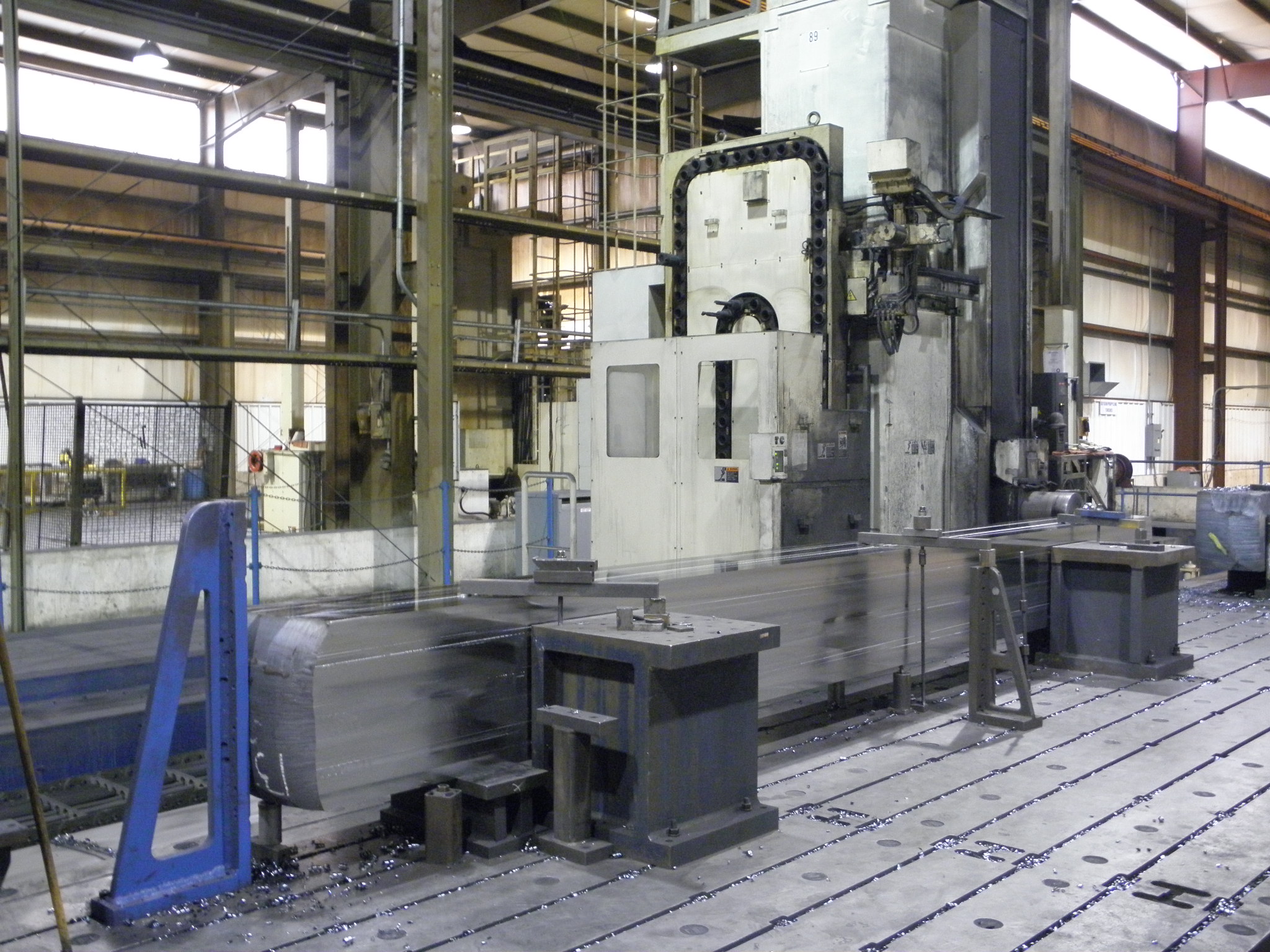

Large CNC machining of forged fluid end block - on CNC machine bed
Figure 2 – Stage One Machining In Process

Stage two consists of sawing the rough machined block into sections of the proper length for the particular fluid end design.

Stage three consists of the rough machining of the cube into a shape that is near to the final shape required. Large amounts of material are removed at this stage.

Stage four is the semi-finish operation. All but the final very critical operations are completed at this stage.

Stage five is the final machining operation. Contouring of the bores in the fluid end is completed at this stage. Special equipment on the machine tool is required to complete this operation.

The capacity strategy employed by some successful manufacturers of fluid ends is to install capacity for stage five operations that will meet demand when it is at the expected peak. When demand is high the manufacturing will utilize internal capacity for stage five, final machining operations, only. Stage one, two, three, and four operations are outsourced. When demand decreases the manufacturer will bring stage four operations and potentially stage three operations in house to keep the internal capacity utilized. The fluid end manufacturer maintains a high level of equipment utilization. The fluctuation in large machining capacity utilization is pushed out into the companies that specialize in providing outsourced large machining capacity.

Companies that specialize in providing large machining capacity to the fluid end and other manufacturers have unique characteristics. Their equipment must be flexible in order to serve a wide variety of industries and part types. They must have capacity available. Lead time for machining equipment can be 24 months. When a customer needs capacity, they need it within a short lead time. The contract machining specialist must deliver high quality products with a quick startup time to first piece production and short turnaround time from raw material to shipment of final product.

K&M Machine-Fabricating, Inc. located in Cassopolis Michigan is a company that specializes in subcontract large machining services. They have customers in the oil and gas, mining, machine tool, and other industries. K&M has recently dedicated several machines to the stage one rough machining of forged blocks to support the increased demand from fluid end manufacturers. See the video below of Rough CNC Machining of Forged Blocks for Fluid Ends.


Back to the Large Machining Article Index


Large Machining of Base Fabrication for Machine Tools

The base of a machine tool is critical to the performance of the machine tool. A large surface grinding machine may have a required positional accuracy of 0.005 mm on all axes. This accuracy must be maintained over the life of the grinder and during metal removal operations. Many components of the machine tool contribute to this accuracy. The base of the machine is the foundation upon which rests all other components in the grinding machine. Accuracy of the final machining operation on the machine tool base is required in order for the finished grinding machine to deliver the required 0.005 mm positioning accuracy. Use of a large CNC vertical gantry mill, like the Mitsubishi MVR43/49 Dx at K&M Machine-Fabricating Inc. is an economical and high quality method to achieve the required accuracy.

The purpose of the machine base in a machine tool is to provide a stable foundation for the operations that will be performed. The functions of the structure of the machine tool base are:

  1. Carry static and dynamic loads without distortion
  2. Assure that all moving parts are stable and move accurately
  3. Resist wear caused by moving parts
  4. Dampen vibration from machine tool operations
  5. Assure stability of the structure through the elimination of residual stress during construction

These functions of the machine tool structure are defined in Youssef and Hofy 2008 publication Machining Technology Machine Tools and Operations published by CRC Press in 2008 ().

The provider of outsourced machined steel fabrication services for large fabrications used in machine tool structures must take several steps to insure that the characteristics of the fabrication design are realized in the machine tool structure that is delivered to the customer. These steps include:

  1. Analysis of the customer requirements through review of drawings and specifications.
  2. Planning the manufacturing process.
  3. Sourcing of the steel plate and other materials.
  4. Cutting the steel plates to the design dimensions and tolerances and completing other secondary operations.
  5. Tack welding the structure to the in-process dimensions leaving material as required for final machining operations.
  6. Welding the structure to meet dimensional requirements and structural integrity requirements.
  7. Stress relieving the structure.
  8. Machining of the structure to meet dimensional requirements.
  9. Paint to the customer’s specification.
  10. Perform inspections.

The large vertical gantry mill is an ideal machine tool to perform the large machining that is required on a large grinder base. The Mitsubishi MVR43/49 Dx vertical gantry mill is large enough to handle the base in a single clamping. It is equipped with two right angle heads and a universal head. Using these heads it is possible to machine five sides of the work piece without moving the work piece. No variation in location or parallelism between features and surfaces will be induced by moving the fabrication between machining operations. Figure 1 shows a large grinder base during machining on the Mitsubishi MVR43/49 Dx vertical gantry mill.

Large Fabricated Grinder Base after Machining

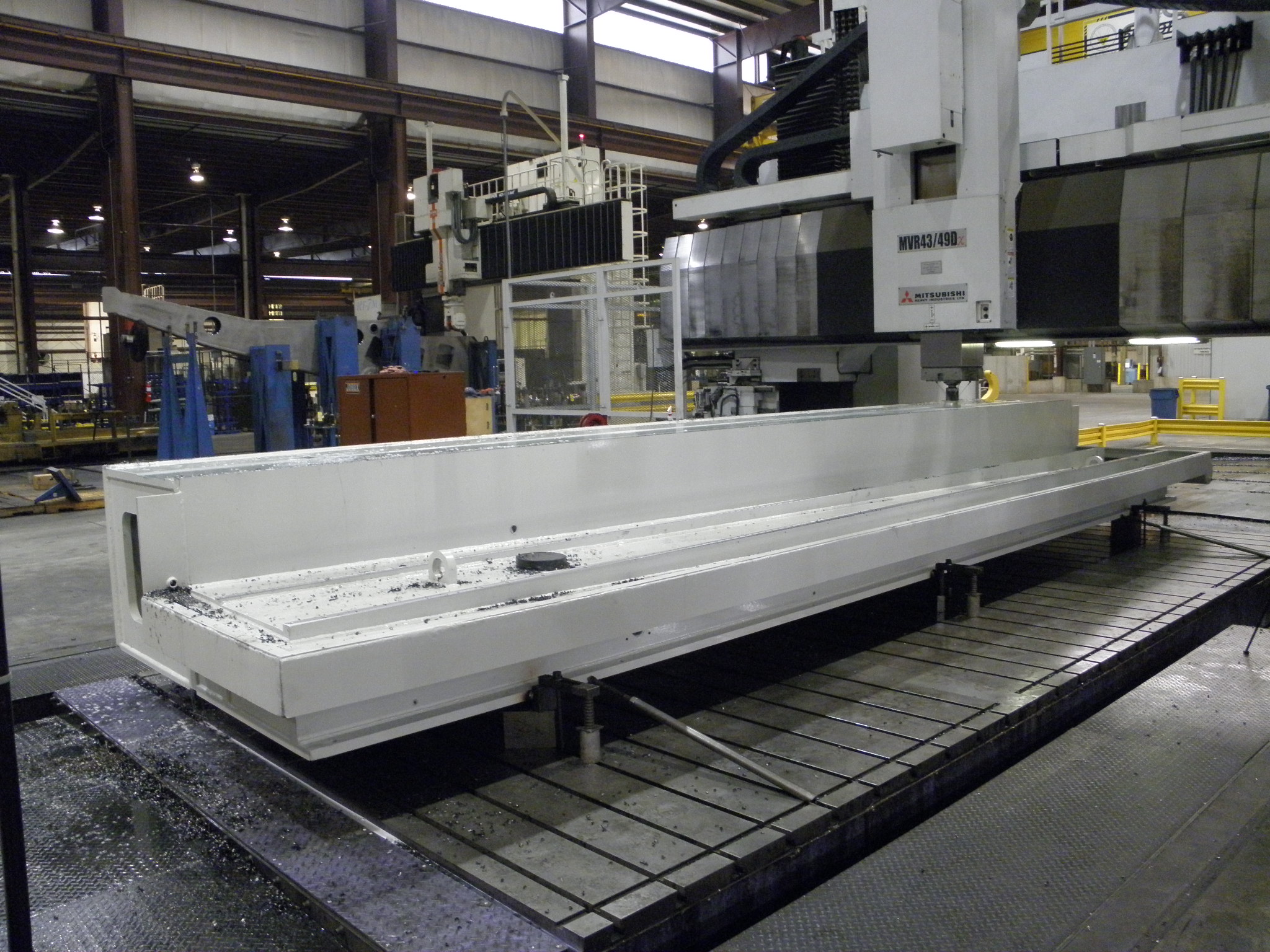

Figure 1 – Large Grinder Base Machining

Typical tolerances required on a base for a surface grinder that is 8.2 meters long are 0.0013 mm flatness and 0.0025 mm parallelism between surfaces. The combination of process planning, machine tool, tooling, machine operation and quality system delivers the tolerances expected by the grinder manufacturer. K&M has two Mitsubishi MVR43/49 Dx vertical gantry mills installed along with nine other large vertical gantry mills. K&M specializes in contract machining of large structures to tight tolerances. A video of a Mitsubishi MVR43/49 Dx vertical gantry mill machining a large grinder base can be seen below.

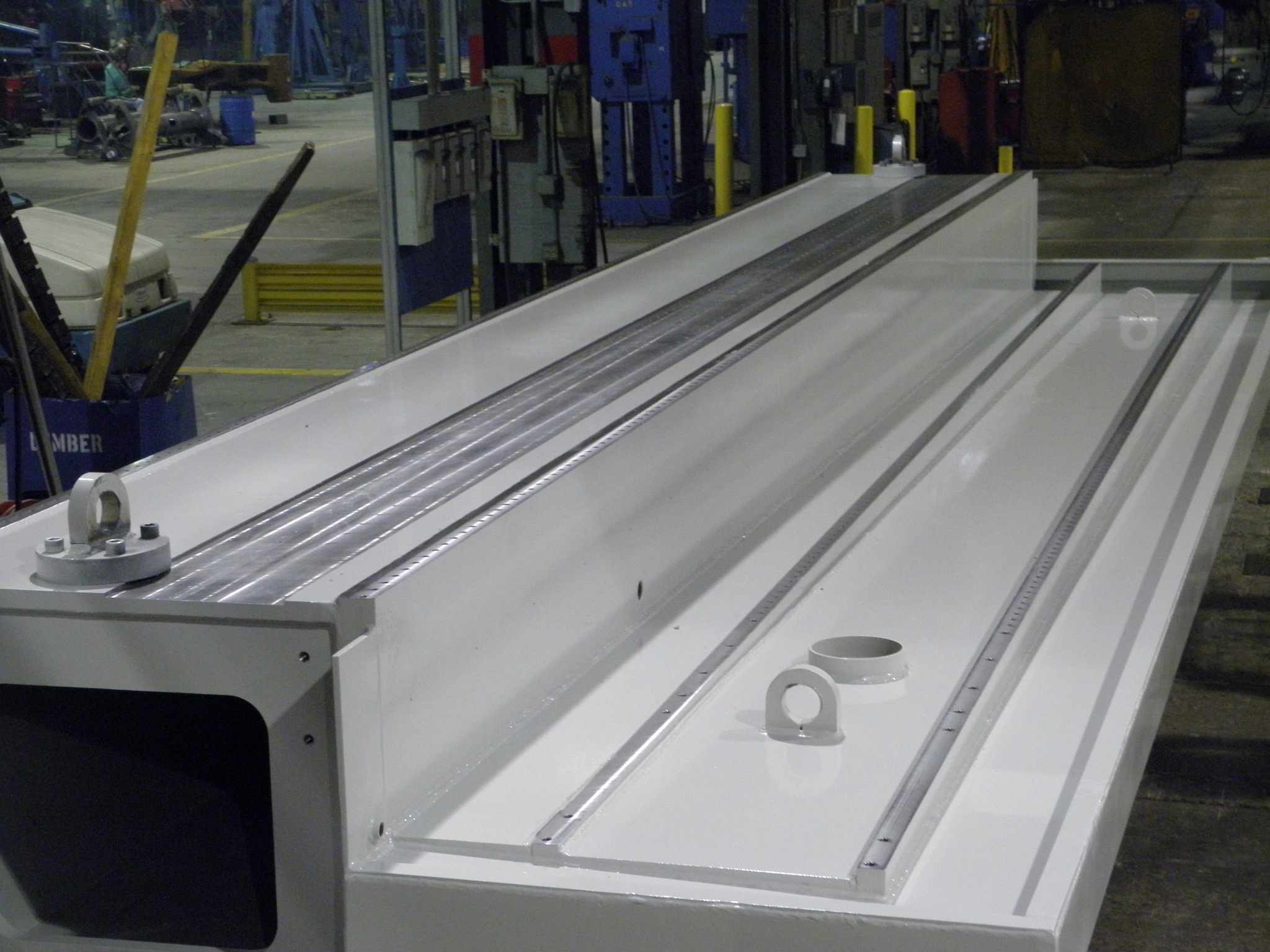

Figure 2 shows the large grinder base after machining and final paint.

Large Fabricated Grinder Base after Machining
Figure 2 – Large Grinder Base after Machining and Paint

Back to the Large Machining Article Index


Large Machining of Weld Joint Surfaces for Large Fabrications

Many of the criteria for designing the weld joints for robotic welding apply to designing weld joints for manual welding in large fabrications. According to the American Welding Society weld joints must be repeatable for robotic welding to be successful. The same is true for welding large fabrications. The designer of large fabrications can chose to specify a machined weld joint or the designer can chose a cast weld joint surface on a casting or a plasma, oxyfuel, or laser cut weld joint surface on a plate burnout. Although a machined joint surface will increase the cost of a component, the savings in weld rework, rejection, and potential weld failure more than pays for the added cost. For large fabrications, large machining is required to produce the machined weld joint surfaces.

A large top level fabrication is typically made up of several smaller fabrications. These smaller fabrications can be 20 feet long with a fabrication tolerance of plus or minus 1/8 inch. When a fixture is used to locate these fabrications to each other the variation between the weld joint faces can vary plus or minus ¼ inch, or a range of ½ inch. A gap of less than zero is not allowed, so the gap can be as large as ½ inch. This is not a feasible condition for welding.

Robotic welding technology exists to overcome variation in the location of the welding joint. These technologies include touch sensing, through-the-arc tracking and vision systems. All of these systems are available proven technologies that are available for a cost. The one aspect of weld joint variation these systems do not overcome is the case of a large weld gap. The consequences of a large gap can be undersize welds, poor fusion, or inability to complete the weld. This translates into increased welding time, weld repair time, or poor quality welds. All of these consequences are costly. There is an alternative that greatly reduces the weld joint surface variation and eliminates the large weld gap. That alternative is to machine the weld joints on the large fabrication. Picture 1 shows a machined weld joint on a fabrication composed of two castings. Picture 2 shows a 20 foot long fabrication fixtured in a Large Vertical Gantry Mill for machining of all weld joint surfaces in a single setup.

Machined Weld Joint

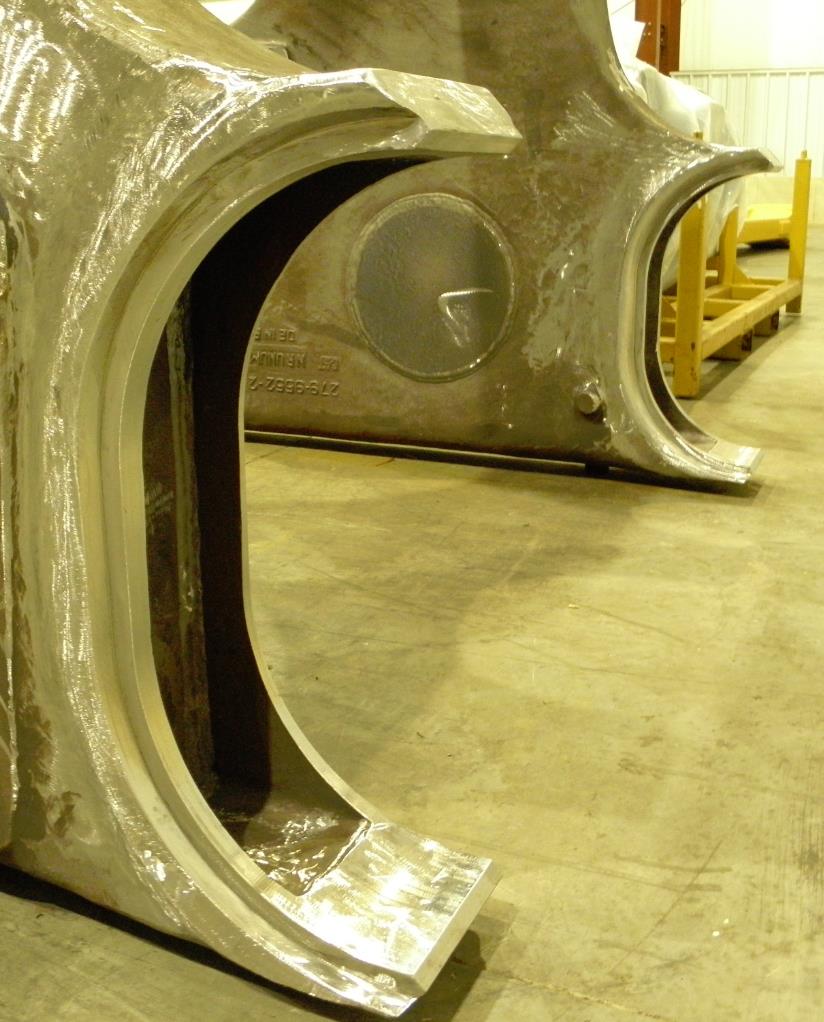

Picture 1 – Machined Weld Joint

Machine All Weld Joint Surfaces on 20 Foot Fabrication

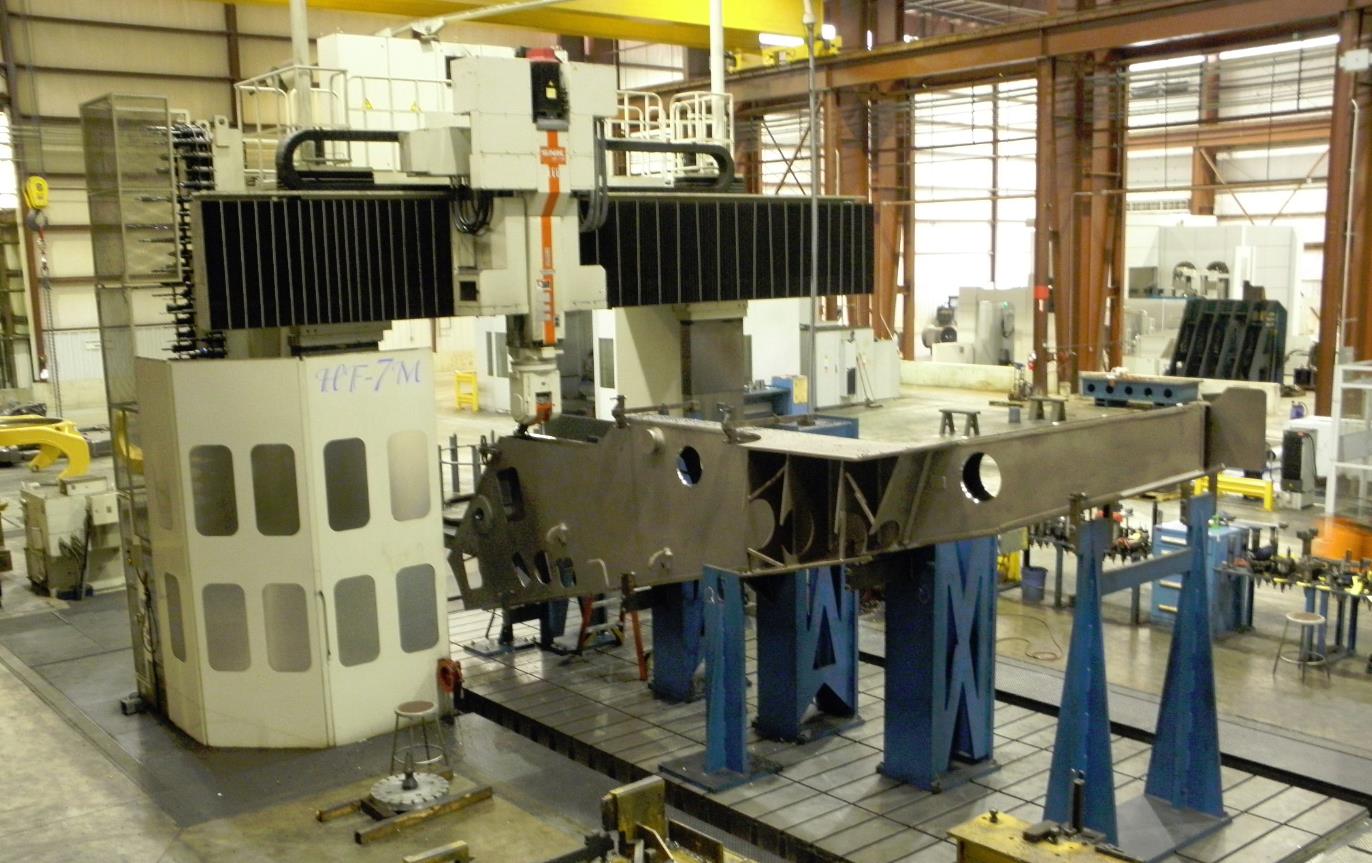

Picture 2 – Machine All Weld Joint Surfaces on 20 Foot Fabrication

The concept of using machined weld joints on large fabrications involves the specification of location and profile of the weld joint surfaces in relation to datums that are identified on the fabrication. These datums are used to locate the fabrication or casting for machining and the same datums are used to locate the fabrication or casting for final fit up and welding at the top level of the fabrication. Profile tolerances of plus or minus 0.002 inch are achievable with modern machining equipment. This will yield a variation of plus or minus 0.004 inches in the fit up of two weld joint surfaces. The potential gap is 0.008 inches. Compare this to the potential 0.5 inch gap on a joint that is not machined.

Weld joint surface designs may be at compound angles to the datums on the fabrication or casting. Machining equipment with right angle and/or universal heads will be required to produce the required weld joint geometry economically. This is done by machining all weld joints on a fabrication or casting in a single setup. The single setup also reduces the variation between weld joints on the same fabrication or casting.

K&M Machine-Fabricating Inc. has several large horizontal boring mills and large vertical gantry mills that are used to machine weld joint surfaces on large fabrications and large castings. View a video of large machining of weld joint surfaces below.


Back to the Large Machining Article Index


Large CNC 3+2 Machining, Lean Manufacturing and the Seven Forms of Waste

Economical and accurate machining of large components can be achieved using large CNC machines and the 3+2 machining technique.  This article will examine 3+2 machining and relate the economical and quality benefits in terms of lean manufacturing’s seven forms of wastes.

3+2 machining refers to the use of a 5 axis CNC machine in a specific manner.  In 3+2 machining two of the axes are locked into a fixed position and the remaining three axes are moved under program control. For example the spindle centerline on a universal head on a vertical gantry mill may be positioned and locked relative to the X, Y, and Z coordinate system of the machine.  From this position the universal head spindle axis becomes the Z1 axis with the X1 and Y1 axes perpendicular to this Z1 axis. The machine is then programmed and moved relative to this new coordinate system.  The CNC program moves the machine X, Y and Z axes simultaneously to produce motion in the X1, Y1 and Z1 axes created relative to the universal head spindle centerline.  CNC controls on machines designed for 3+2 programs are equipped with subprograms that allow the CNC programmer to write 3 axis code relative to the new coordinate system (X1, Y1, Z1).    The control subprograms translate the 3 axis X1, Y1, and Z1 program code into the machine movement commands for the machine X, Y, and Z axes.

3+2 machining differs from 5 axis machining.  5 axis machining involves the simultaneous motion of 5 axes during the cutting process.  In 3+2 machining two axes are fixed and there is simultaneous motion of only three axes.  An example of an ideal part for 3+2 machining is shown in Picture #1.  This picture shows two of the four sets of two bores each.  Each set of bores has machined inside and outside faces.  The bores and the faces of each set of bores are offset at a different angle to each of the X, Y and Z axis of the locators and the gantry machine.  Without 3+2 machining at least four setups would be required instead of the one setup possible with 3+2 machining.

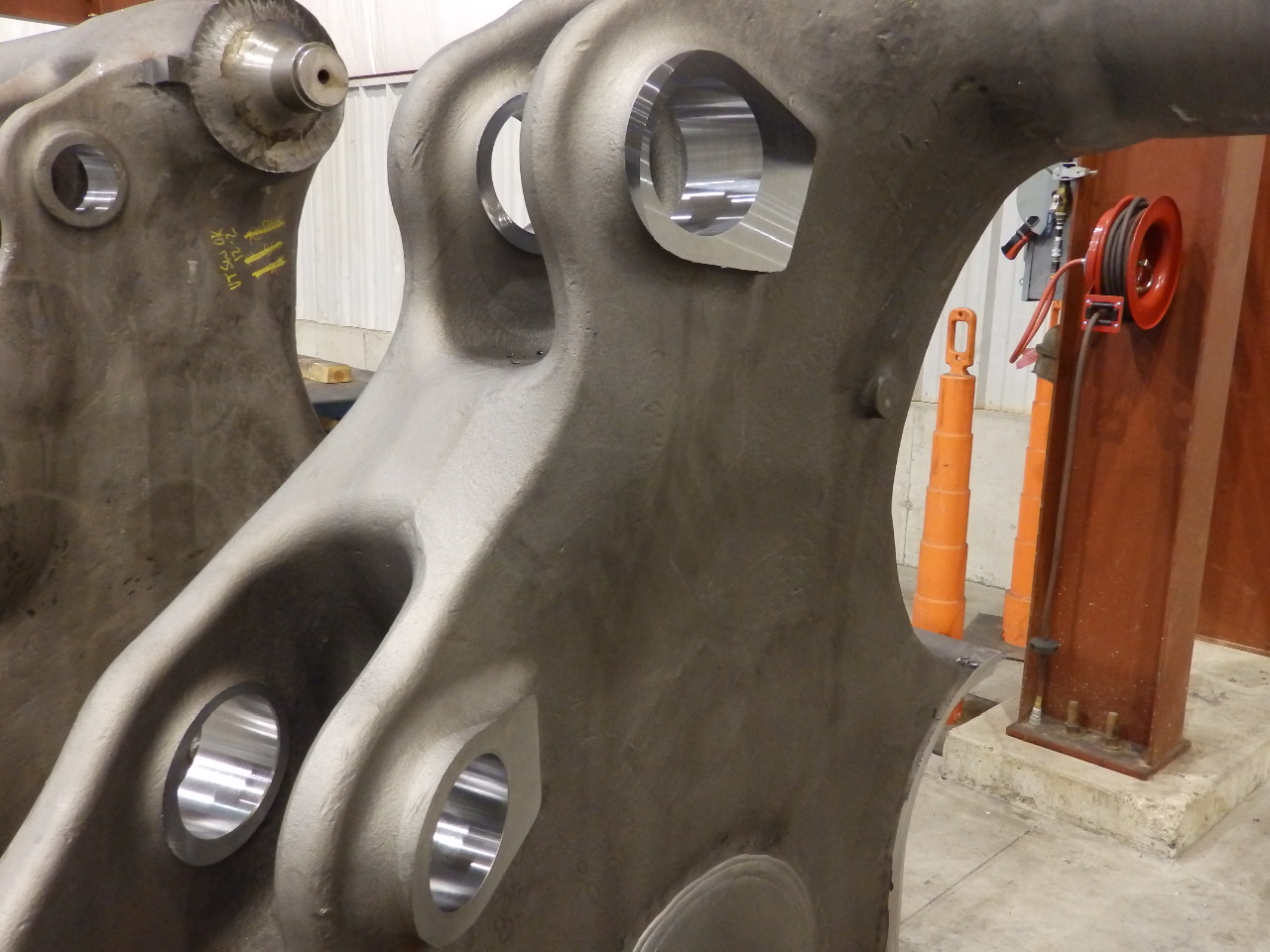

Picture #1 – Large Component with Bores and Faces Offset at Angles to X, Y, Z Axes

Picture #1 – Large Component with Bores and Faces Offset at Angles to X, Y, Z Axes

Machines used for 3+2 machining have 5 axes.  Why is 3+2 machining used when 5 axis machining could be used?  There are several reasons.  For large CNC machines used to machine large components the guide ways for the X, Y and Z axis are designed and built for heavy stock removal and speed.  Hydrostatic guide ways are commonly used.  The universal head on a large CNC vertical gantry mill or large CNC boring mill is designed and built for flexibility and to fit into relatively tight spaces.  It is not designed for heavy cutting loads during movement of its two axes of motion.  By locking the two axes of motion on the universal head it becomes more rigid and capable of handling higher cutting forces.  It can still not handle the maximum cutting forces that can be generated by the X, Y and Z axis, but it can handle more than if it was not locked.   3+2 machining, where it can be used, allows higher cutting forces and higher cutting speed than 5 axis machining.  Programming for 3+2 machining is simpler than 5 axis machining programming.  The CNC programmer can program in three axes using the machine control subprogram.  To the programmer 3+2 machining programming is like 3 axis programming.  There are CAM software packages that automate the 3+2 programming, but manual G code programming is possible.  5 axis machining requires the use of a CAM software package for programming.

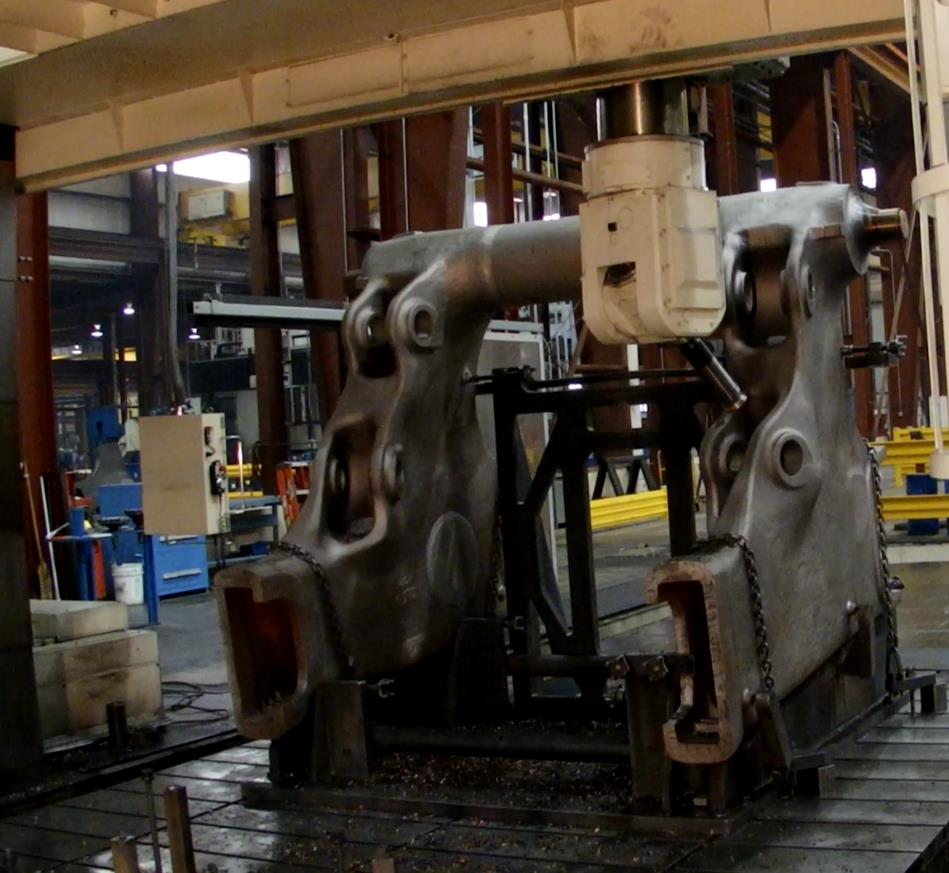

Picture #2 shows a large vertical gantry mill using 3+2 machining with a universal head.  Picture #3 is a picture of the same machine, an SNK RB-7VM Vertical Gantry Machine.

Picture #2 Large Vertical Gantry Machine – 3+2 Machining

Picture #2 Large Vertical Gantry Machine – 3+2 Machining

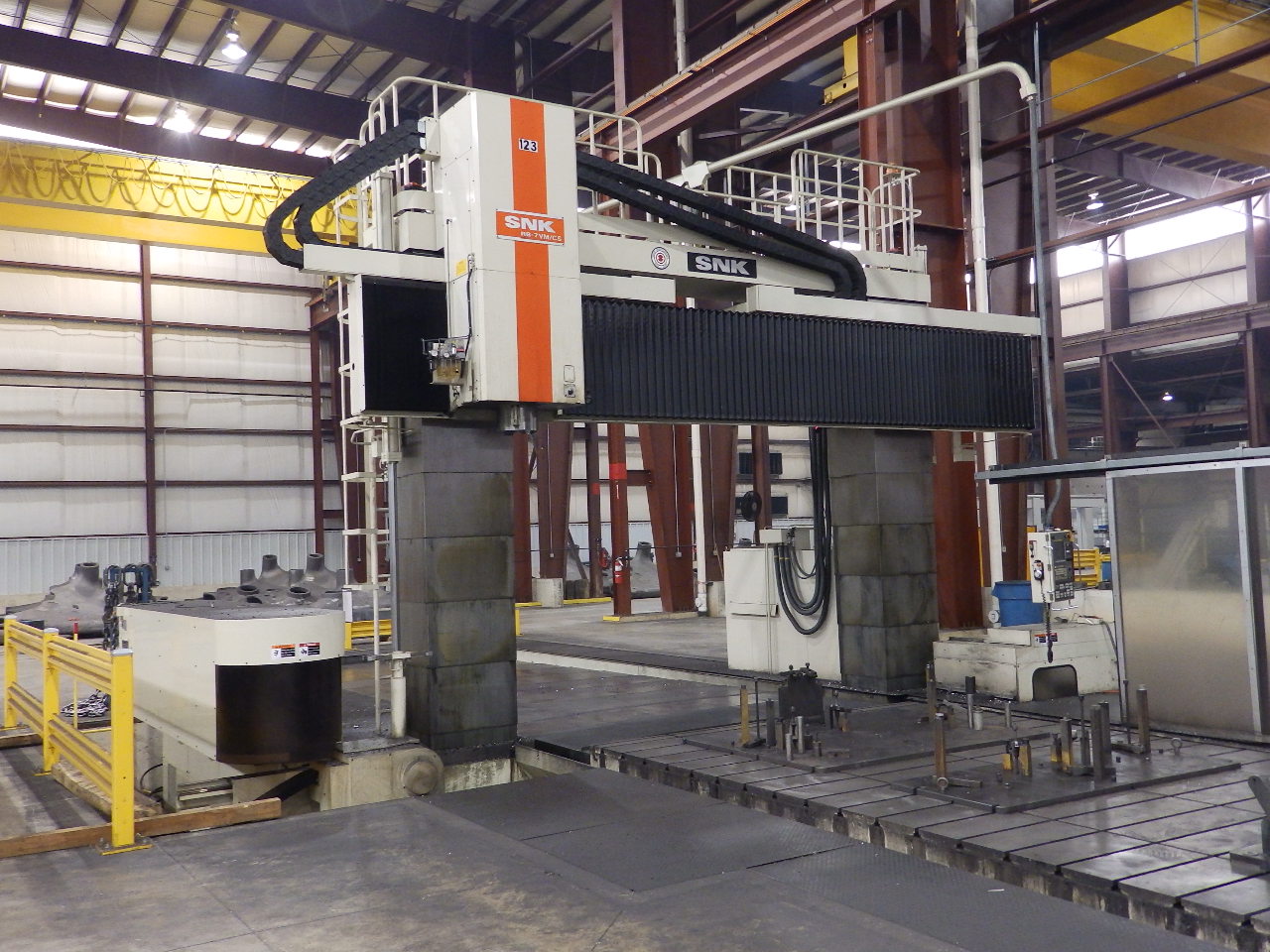

Picture #3 – Large Vertical Gantry Machine – SNK RB7-VM

Picture #3 – Large Vertical Gantry Machine – SNK RB7-VM

A video of 3+2 machining of the part shown in Picture #2 may be viewed below.

You can machine five sides of a large component in one setup when you use 3+2 machining.   You can machine along axes that are not perpendicular to the X, Y and Z axes of the large CNC machine.  There are advantages to 3+2 machining on any size component, but for large components the advantages are greatly multiplied.  Consider the seven forms of waste that are a cornerstone of lean manufacturing

Waste of defects – Variation in dimensional results in machining are a form of the waste of defects.  If the variation causes an out of print condition the work piece must be repaired, scrapped or deviated by the customer.  Even if the out of print condition is accepted by the customer there is the potential cost of less than ideal performance of the part in the field or the real cost of time spent considering the deviation request and the loss of credibility and trust on the part of the supplier.  3+2 machining reduces the number of setups required to finish machine a component.  Setups add to variation.  Elimination of setups reduces variation and defects.  Large components are more costly than small components.  The repair costs or cost to scrap are much greater on large components.

Waste of transportation – The reduction of setups that is possible with 3+2 machining reduces the number of times a part must be moved between machines for different operations.  Large components are more costly to move than small components.

Waste of inventory – When multiple setups on the same or multiple machines are required there must be in-process inventory present to maintain the flow of parts.  When setups are eliminated the in-process inventory between setups is eliminated.  Large components are expensive.  The waste of inventory is expensive.

Waste of motion – Motion can be consider the motion of the machine operator.  Setups, especially for large components, require work, and motion on the part of the machine operator.  Eliminating setups eliminates operator motion.

Waste of waiting – Parts wait between machines and on the machine during setup.  The machine waits during setup.  No cutting action or value added work is being performed while a setup is in process.  Large CNC machines required for large components are expensive.  The operators for these machines are skilled.  Elimination of setups reduces the high cost of waiting.

Waste of over processing – When multiple setups are required to complete machining there are tolerance stack ups in the relationship of the features in one setup to the features in a different setup. In order to maintain the desired tolerance between features machined in different setups it may be necessary to hold a tighter tolerance in each individual setup.  This tighter tolerance in each setup is over processing that is not required in the single setup of 3+2 machining.

Waste of over production – When machining in multiple setups there may be multiple machines involved and inventory between operations.  Each machine in the process has the potential to over produce in order to keep the machine running.  With a single setup in 3+2 machining there is only one setup and no opportunity to overproduce in any operation other than the final operation.

You can see that 3+2 machining fits into the lean manufacturing philosophy.  It is a very flexible and lean process, especially when machining large components.  The larger the component, the greater the potential reduction in waste.  Large CNC machines capable of 3+2 machining are expensive and have a long lead time to purchase and install.  If your product requires large components that can benefit from 3+2 machining but you do not have the volume to justify a machine or you do not have the lead time to wait for a machine, consider using a contract machining source that specializes in 3+2 machining of large components.  These companies are in the business of having capacity available on short notice.  They combine work from several customers to load work onto the machines.  You can take advantage of the benefits of 3+2 machining on large components without the capital investment, learning curve or lead time.

Back to the Large Machining Article Index


High Feed Milling Large Steel Castings – Don’t Let Casting Inclusions Disrupt Your Supply Chain

Large steel castings can be subject to inclusions or structural anomalies.  These inclusions can cause high tool wear and even catastrophic tool failure.  The need to machine 140 mm diameter holes 175 mm deep into a large steel casting with a high frequency of inclusions provided an opportunity to test various tooling solutions.  High feed milling proved to be robust to the presence of inclusions in the castings.

According to Key to Metals AG inclusions in steel castings are different in structure from the base metal.  The American Foundrymen’s Society Inc. states that inclusions may be caused by de-oxidation or re-oxidation events, presence of refractories or sands used in the casting process, or the emulsification of slag.  The root cause of the casting inclusions is the foundry.  The foundry is often remote from the machining operation, potentially on a different continent.  This distance and inventory makes collaboration between the machining source and the foundry difficult.  The correction of the root cause of the casting inclusions will take time and concentrated cooperative effort on the part of the machining source and the foundry.  Time waits for no man. Neither does a customer that needs finish machined castings to maintain her production schedule.  There is no time to wait for a foundry correction.  The machining source must find the best tooling solution to deal with inclusions, meet production schedules, and control costs.

Picture #1 shows a large steel casting that is subject to the presence of inclusions in the locations where 140 mm diameter bores, 174 mm deep must be machined.  Picture #2 shows the casting after the machining operation.  This operation is one of many welding and machining operations required on a large component.  Cutting tool failure due to the presence of inclusions in the casting was causing disruptions to the supply chain and excess machining and tooling costs.

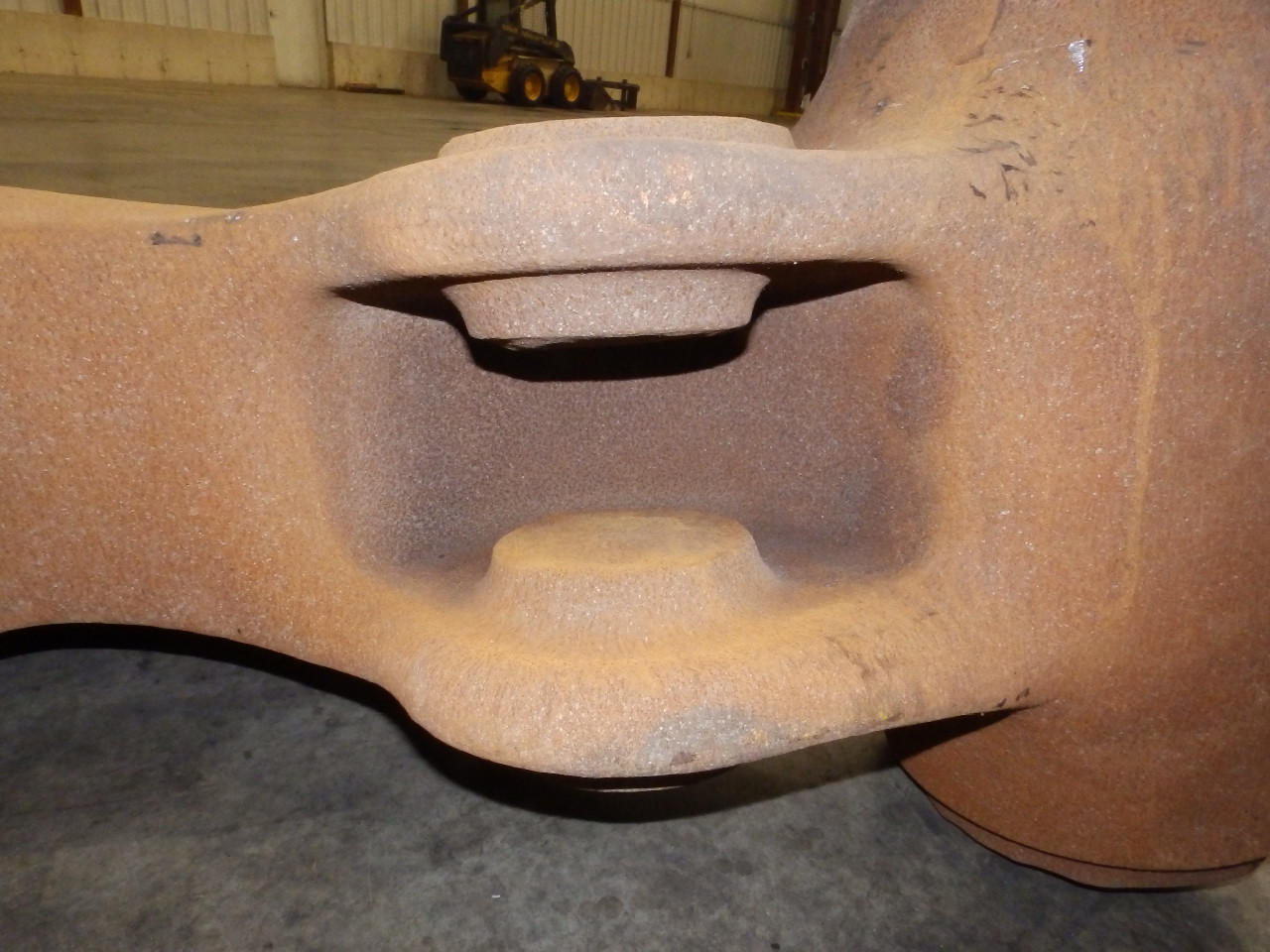

High Feed Milling Large Steel Castings - Raw Casting

Picture #1 – Raw Casting

High Feed Milling Large Steel Castings - Bores After Machining

Picture #2 – Bores after Machining

Two additional obstacles were present with this operation.  It is necessary to reach through one bore to machine the second bore which requires a long extension on the tool.  The surfaces perpendicular to the bores that must be machined are not flat.

Drilling is an obvious machining method to machine the bores.  Many tool manufacturers offer center cutting drills and inserted drills that can machine these bores.  Several different drill designs were tested on this operation.  None of the drills tested could stand up to the inclusions.  Failure started with high insert wear, then damage to the cartridges that hold the inserts, and finally damage to the drill body itself.  Although all of these drills are used successfully in other applications the high frequency of inclusions, long reach and non-flat surface made the drills fail.  High feed milling replaced drilling on this operation. Picture #3 shows the Seco 3 inch diameter high feed milling cutter used on this operation.  Picture #4 shows the milling cutter mounted on a 16 inch long extension needed to reach the inside bore.

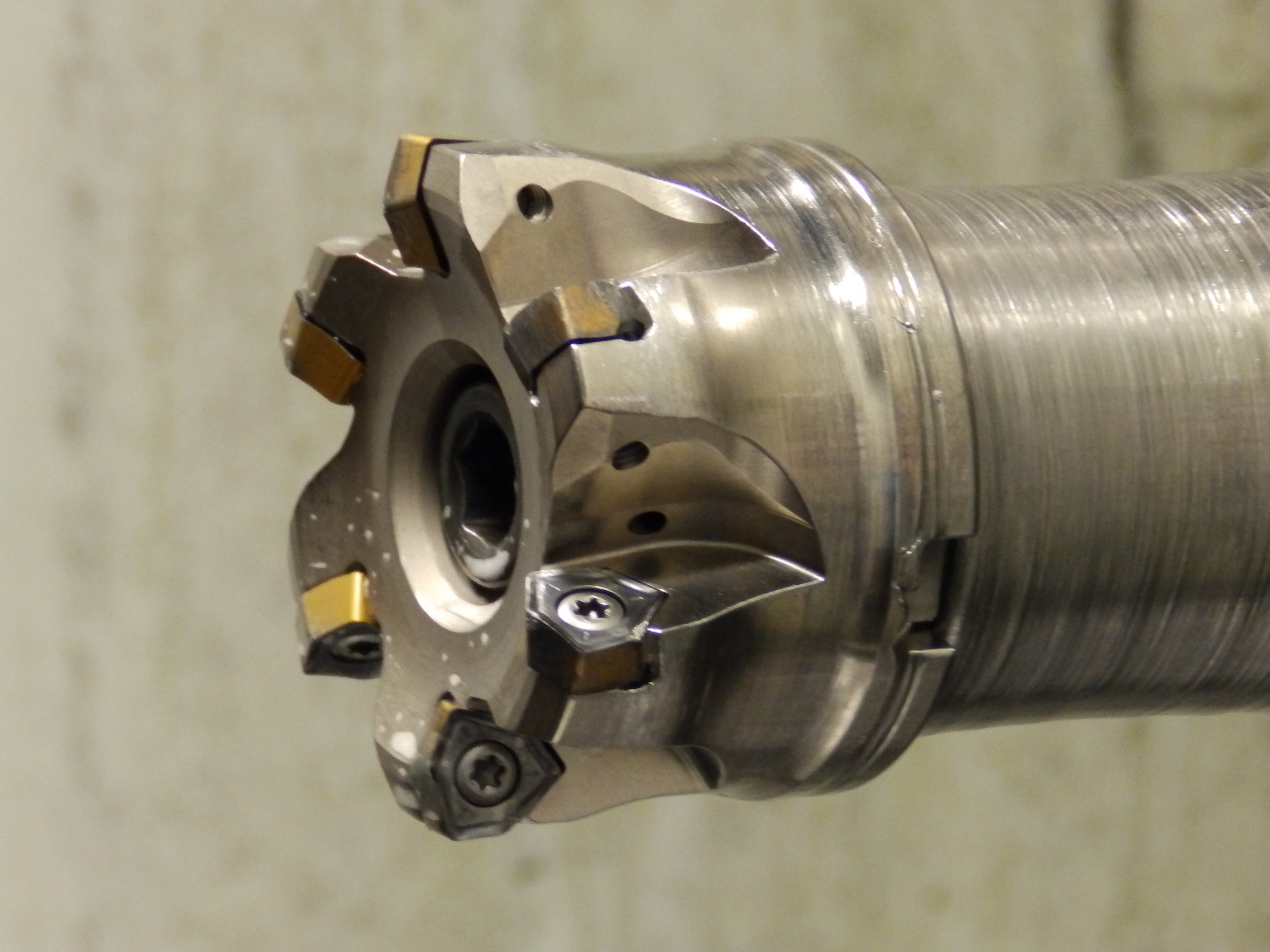

High Feed Milling Large Steel Castings - Seco 3 Inch Diameter High Feed Milling Cutter

Picture #3 – Seco 3 Inch Diameter High Feed Milling Cutter

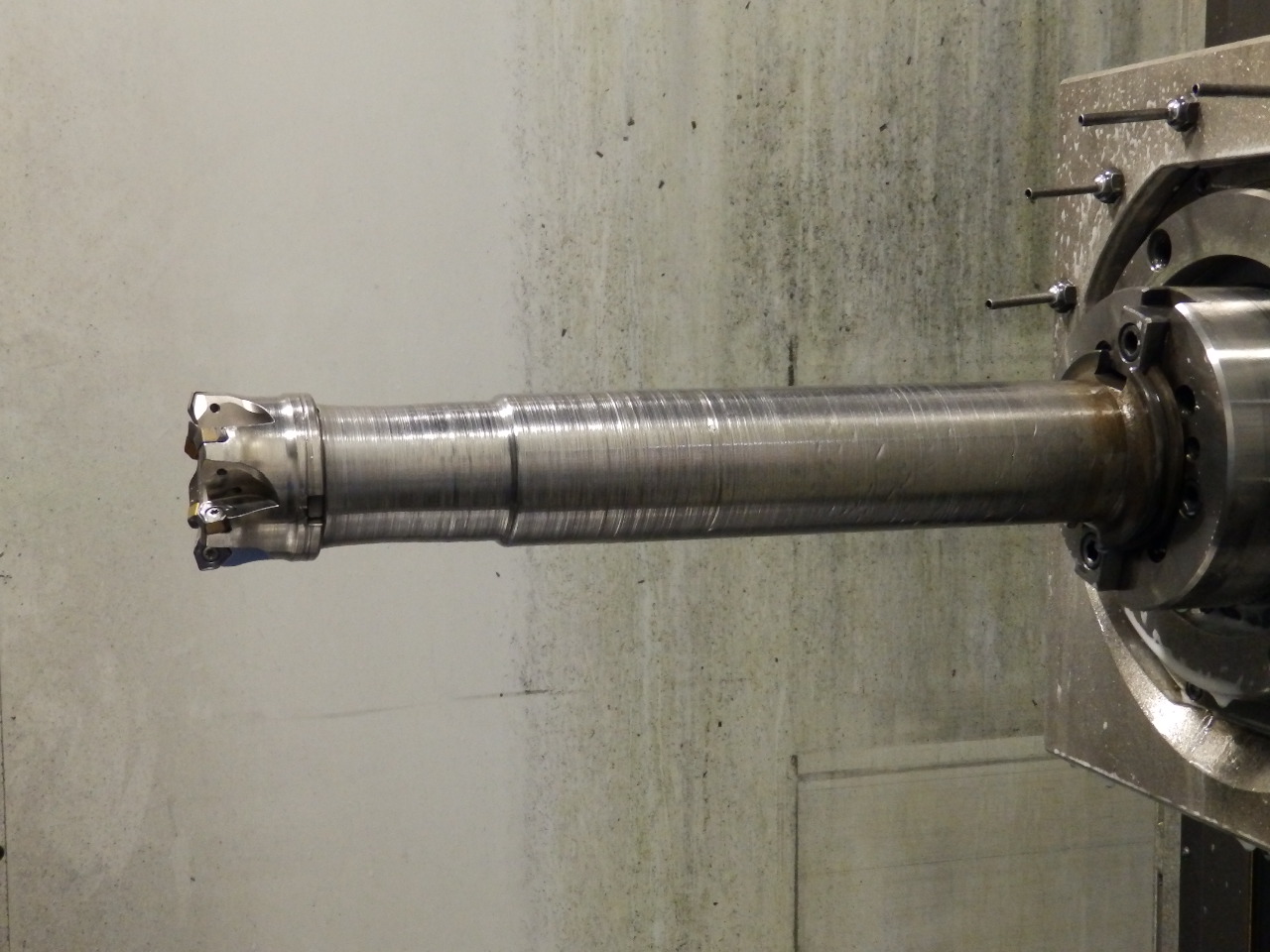

High Feed Milling Large Steel Castings - Seco High Feed Milling Cutter on 16 Inch Long Extension

Picture #4 – Seco High Feed Milling Cutter on 16 Inch Long Extension

Todd Miller in his article in MoldMaking Technology explains that rigidity of the machine is a key to successful high feed milling.  This operation is performed on a Pama Speedmat 4/160 machining center which is equipped with a 160 mm diameter spindle.  The 16 inch long extension on the tool is one piece.  It was not necessary in this case to use an anti-vibration bar for the extension.  A multi-piece extension was tested but was not rigid enough.  Picture #5 shows the trigon style insert used in the high feed milling cutter.

High Feed Milling Large Steel Castings - Trigon Style Insert

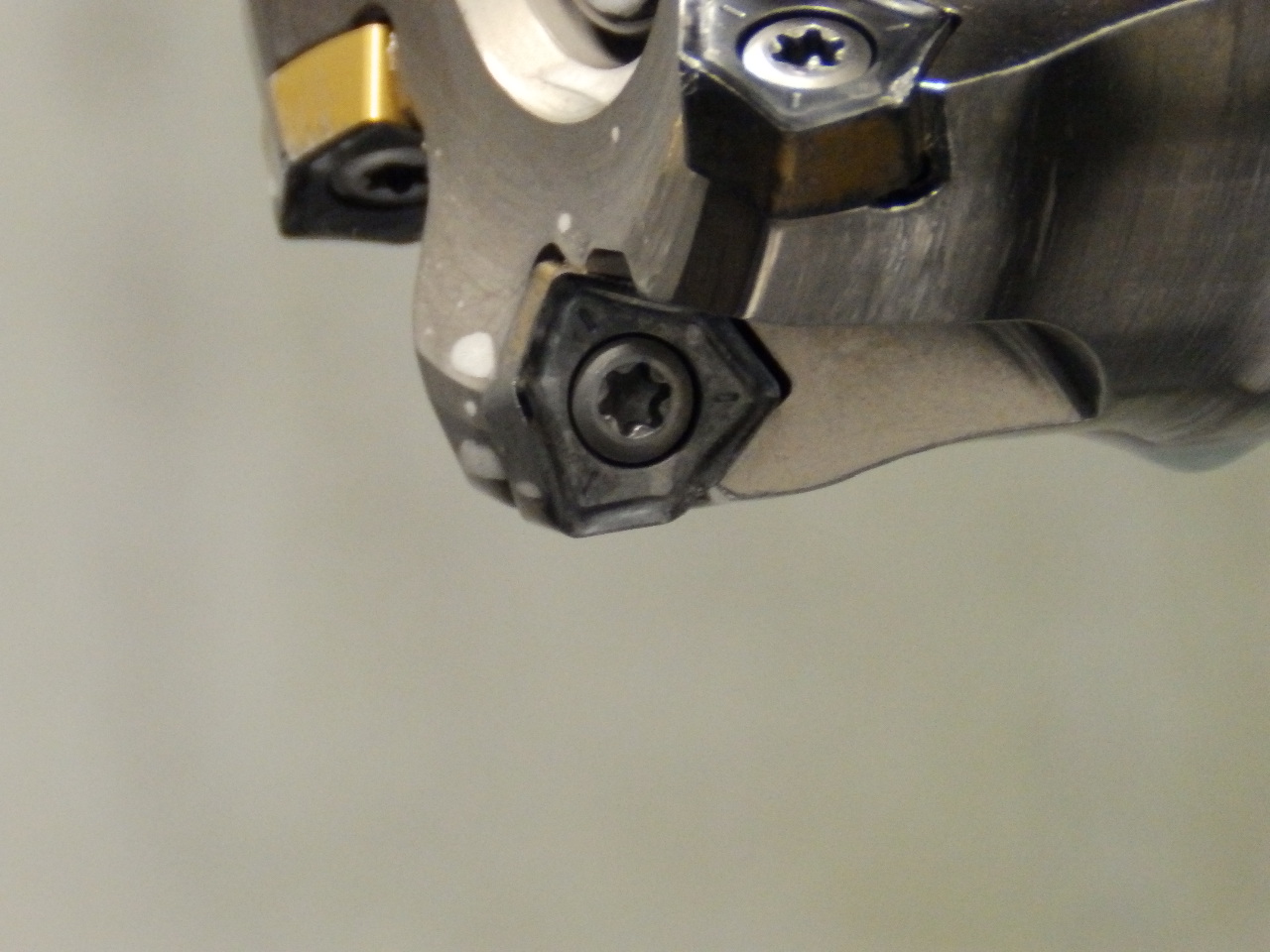

Picture #5 – Trigon Style Insert

The geometry of the trigon insert distributes the cutting force along the edge of the feed mill insert.  The result is a relatively high chip load per tooth with a relatively thin chip.  In steel applications most of the heat generated is taken away with the chip.  The typical negative rake geometry used on a high feed milling cutter causes the chip to be pushed away from the cutter body.  This geometry also directs cutting forces along the spindle axis and reduces vibration.  The video below shows the high feed milling operation.

The cutting parameters are 360 RPM, 2,650 mm/min feed rate around the 140 mm diameter bore.  The Z axis feeds at 1 mm per revolution of the cutter around the 140 mm bore.   The cycle time to machine the 175 mm deep bore is 7.7 minutes.  This setup has proven to be very robust to the presence of inclusions in the casting.  Insert wear is predictable and there are no catastrophic tool failures.  The result is a stable, in control operation which is critical to a smoothly flowing supply chain.

It is always better to attack a problem at the root cause.  In some situations you may not have any control over the root cause.  In the case of a machining source with no control over the casting process, expertise in alternative machining methods is critical.  The root cause may not be corrected, but an in-control process can be put in place which eliminates a disruption to your supply chain.

Back to the Large Machining Article Index


Large CNC Machining Of Steel Casting – Custom Head for Tight Clearance Milling

Large CNC machining of large steel casting and large steel fabrications frequently requires milling operations in tight spaces where a standard right angle head attachment will not fit.  In these cases it is necessary for the machining supplier to purchase a custom right angle head small enough to fit into the available space.  Right angle head attachments are available that have a core standardized design that is customized to fit the specific application.  This article is a look at an application of a customized right angle head.

The large steel casting has two faces inside the casting that must be machined.  Picture #1 shows the casting and the two faces.  There is 399 mm (15.7 inches) of clearance from the finished surface of face two to the top inside diameter of the casting.  Picture #2 shows the casting prior to machining.  You can see that there is a lot of stock removed from face two.  There are also casting ribs inside the casting.  Both of these features further restrict the space available for the right angle head and the milling cutter.

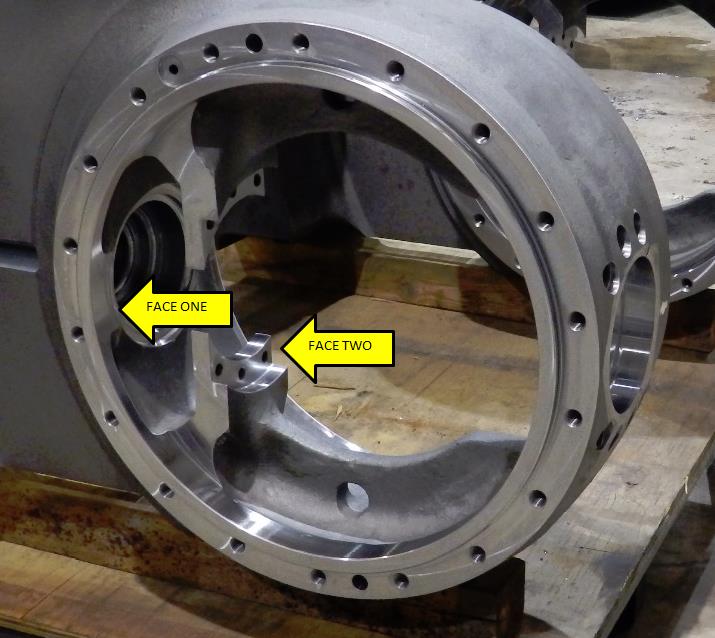

Large CNC Machining Of Steel Casting - Custom Head for Tight Clearance Milling, Two Faces After Milling

Picture #1 – Two Faces After Milling

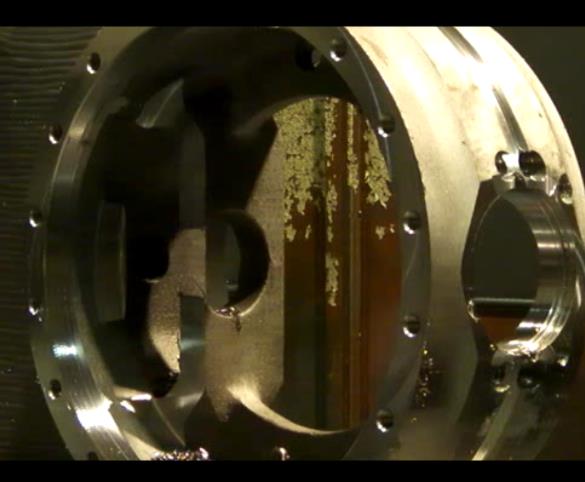

Large CNC Machining Of Steel Casting - Custom Head for Tight Clearance Milling, Two Faces Before Milling

Picture #2 – Faces Before Machining

The engineer at the machining supplier uses the casting drawing, machining drawing and the expected variation in casting material to calculate the clearance that is available for the machining operation.  He then uses the tool size and machining motion to calculate the maximum size of the right angle head.  The supplier of the right angle head is consulted to determine which of their heads can be customized to fit into the space.  An adapter will be needed to adapt the right angle head onto the spindle of the large CNC horizontal boring machine.  Picture #3 shows the right angle head with tool mounted that was customized for this job.

Large CNC Machining Of Steel Casting - Custom Head for Tight Clearance Milling, Custom Right Angle Head with Milling Cutter

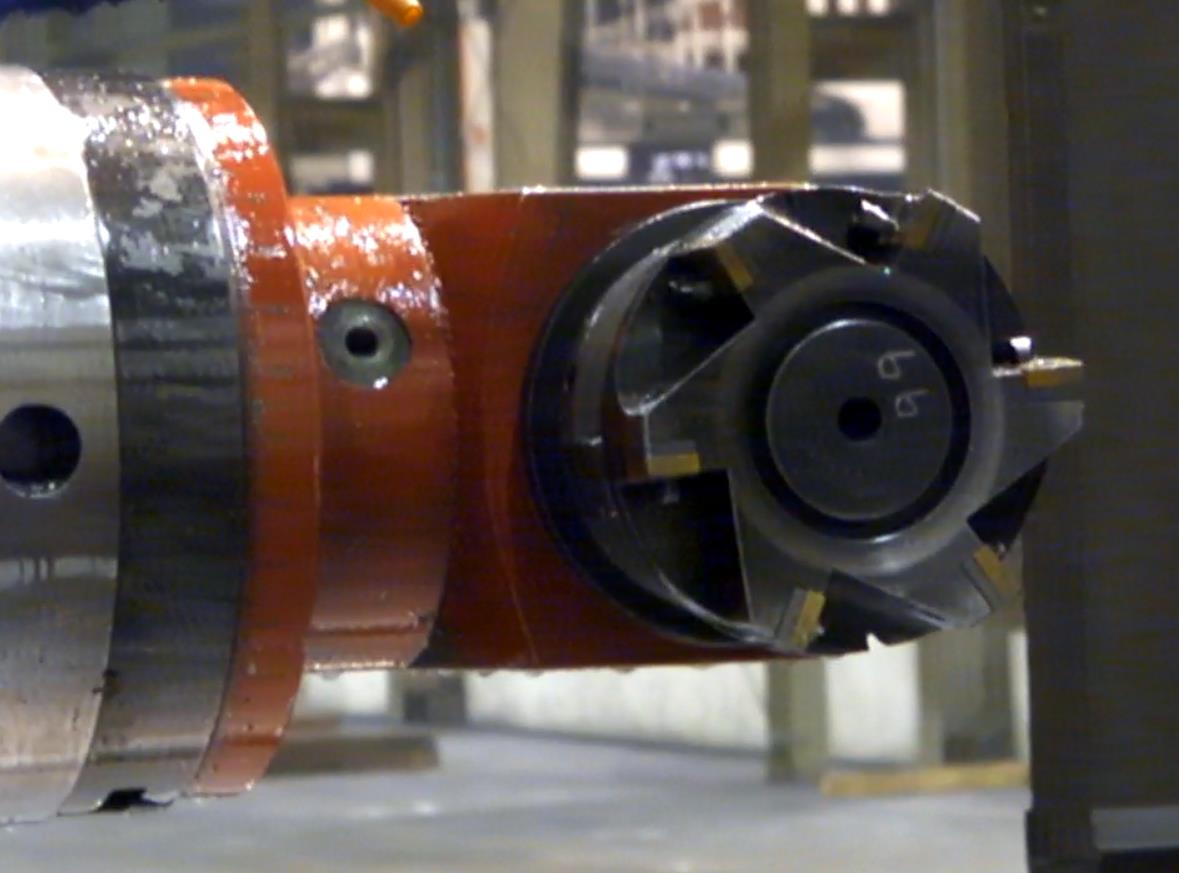

Picture #3 – Custom Right Angle Head with Milling Cutter

You can see that the width of the head is close to the diameter of the milling cutter.  There is a trade off between the diameter of the milling cutter and the envelope that the head will need for travel.  The larger the milling cutter the smaller the envelope will be.  There is a maximum diameter for the milling cutter to machine the diameter of surfaces to be milled.  The custom right angle head is a significant investment.  It is important to consider the family of parts that can benefit from the right angle head.  The engineer also has to consider potential future applications.  The machining engineer works with the engineer at the right angle head supplier to specify the dimensions and other characteristics of the right angle head.  Picture #4 shows the right angle head in action.

Large CNC Machining Of Steel Casting - Custom Head for Tight Clearance Milling, Right Angle Head in Action

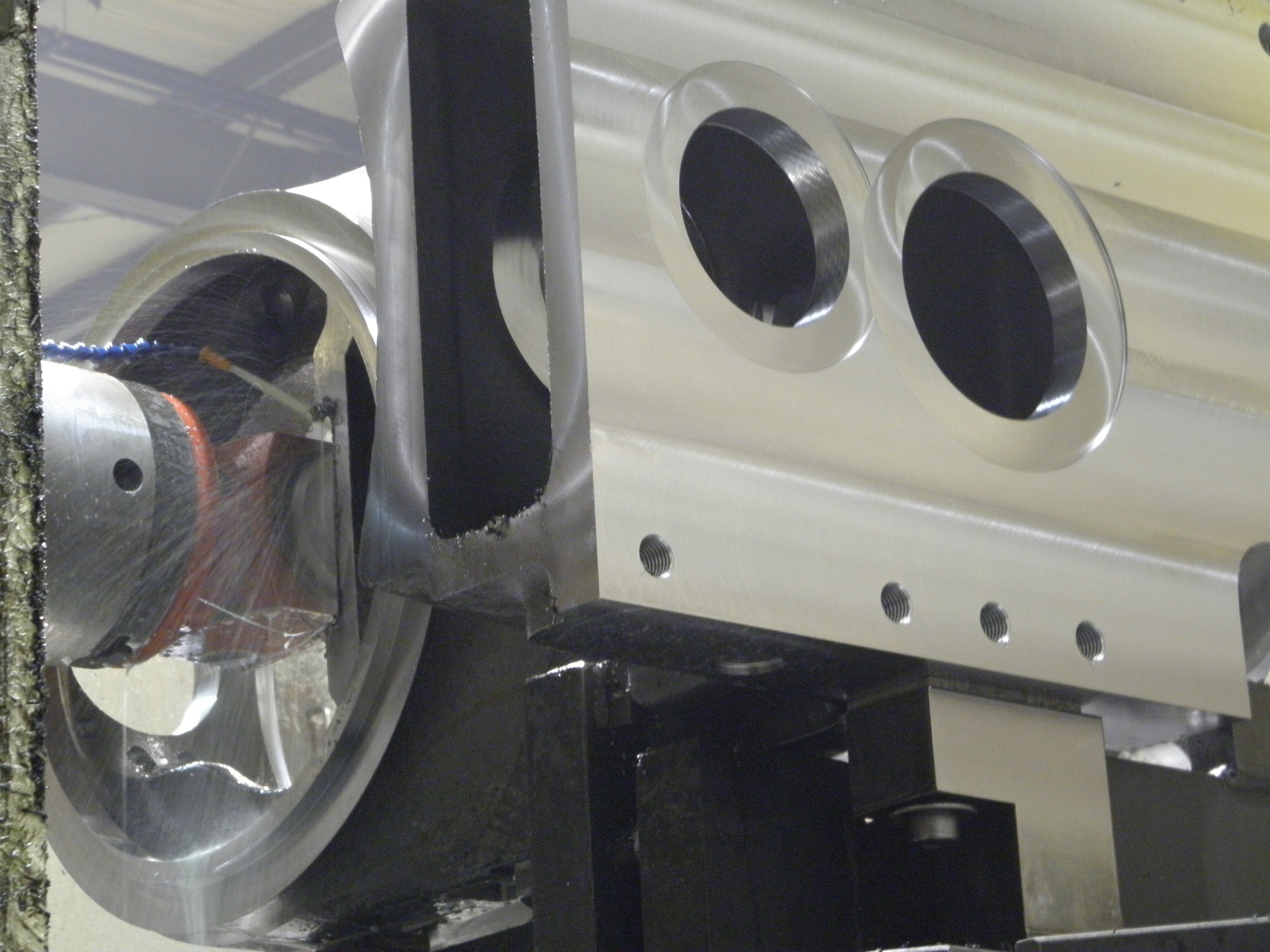

Picture #4 – Right Angle Head in Action

It is difficult to appreciate the tight space that this milling operation works in without seeing it in action.  The video below will give you a better idea.

The surfaces milled into this large steel casting are important for the functioning of the final assembled part.  The large steel casting design engineer, the machining engineer, and the right angle head engineer all have a role to play to find an economical solution to meet the design requirements of the final part.  This is an example of successful collaboration across the supply chain.  The contract large machining supplier is at the center of this collaboration.

Back to the Large Machining Article Index


Process Controls for Contract Manufacturers of Large Machining and Large Fabrications – Part One – Customer Supplier Interface

This is the first in a series of articles that will explore the process controls that are used by contract manufacturers that specialize in large machining and large fabrications.  The focus is on the process controls that may be different for a contract manufacturer of large machining and large fabrications.  The intended audience includes buyers, product engineers, manufacturing engineers, quality engineers, and auditors that are dealing with contract manufacturers.  The areas where process controls are needed apply to any contract manufacturer of large machining and large fabrications.  The process controls that are used as examples are only one possible control method.  Process controls are subject to continuous improvement activities and to corrective and preventative action and are constantly evolving.

Part one of this series of articles looks at the interface between the customer and the contract manufacturer of large machining and large fabrications and the control of customer supplied documents.  Future articles will explore the process controls for, operator instructions, welding and machining, material traceability, material release to suppliers and scheduling, among other topics.

The company that provides contract manufacturing services for large machining and large fabrications has the following conditions that impact the process controls:

  • Low volume – Order quantity can be as low as one piece, production orders for ongoing jobs are typically one to five pieces per week.       A high volume production job may be up to five pieces per day.
  • Infrequent repeat orders – A repeat order for a part that has been manufactured in the past may be placed several years after the last time a part was produced.
  • One time orders – An order may be placed for a part that will never be required in the future.
  • High customer mix – Parts for several different customers are in the manufacturing system at the same time.
  • High part mix – Many different part numbers are in the manufacturing system at the same time.
  • High cost of raw materials – Large parts require large raw materials.       Large steel castings can cost $50,000 each. A standard size steel plate one inch thick can cost $3,300.
  • Make to firm order – Contract manufacturers of large machining and large fabrications typically build to firm customer order and order materials only for firm customer orders. In some cases a customer will give material authorization for the contract manufacturer to purchase material when the customer has not yet placed a firm order.
  • Market volatility – The contract manufacturer is subject to the market volatility that their customers face. When market conditions are bad for the customer, work will be brought into the customer facility or delivery dates for firm orders will be pushed out. When market conditions are good, customers will outsource more work to the contract manufacturer.

Pictures 1 through 4 are examples of products that are subcontracted to a large machining and large fabrication manufacturer.  Picture # 1 is a large fabricated, machined, painted and assembled base for a large CNC router.  Each machine is made to order to a specific set of drawings.  Other similar machines have been made in the past and may be made in the future, but each is unique, built to the customer’s end-customer requirements.  Picture # 2 is a large ductile iron casting for a wind turbine.  Production volume reached five pieces per week and every piece is machined to the same customer drawing.  Volume rises and falls depending on the customer build rate.  Picture # 3 is a large high strength steel fabrication for a winch used in an offshore application.  This was a onetime build.  Picture # 4 is a large steel fabricated engine block being machined.  This is a one-time build, which may repeat years in the future at a different design revision level.

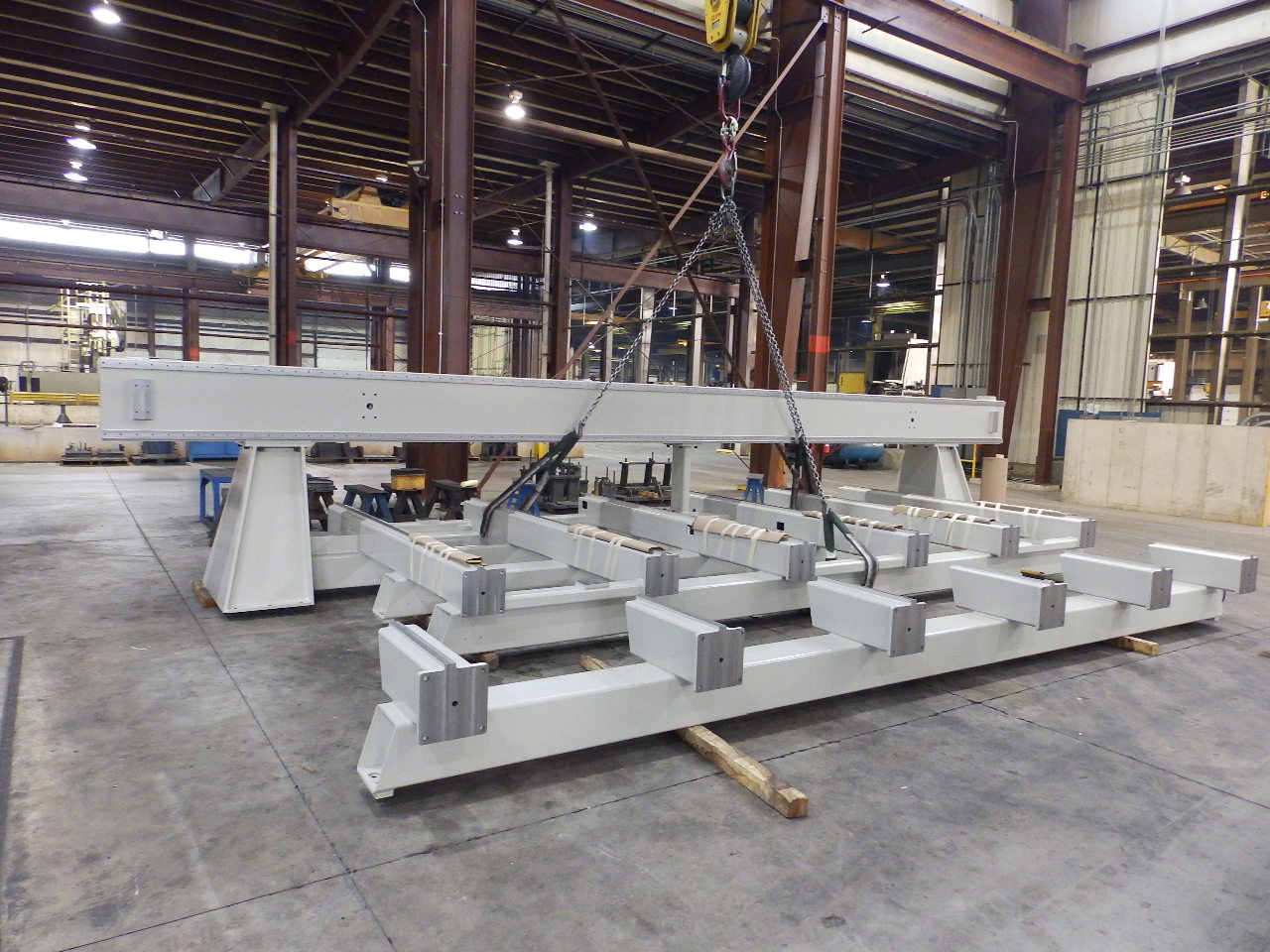

Process Controls for Contract Manufacturers of Large Machining and Large Fabrications - Large CNC Router

Picture #1 – Large CNC Router

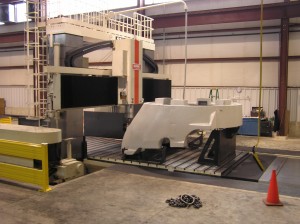

Process Controls for Contract Manufacturers of Large Machining and Large Fabrications - Large Ductile Iron Casting Machining

Picture #2 – Large Ductile Iron Casting Machining

Process Controls for Contract Manufacturers of Large Machining and Large Fabrications - Robotic Welding Large Steel Winch Component

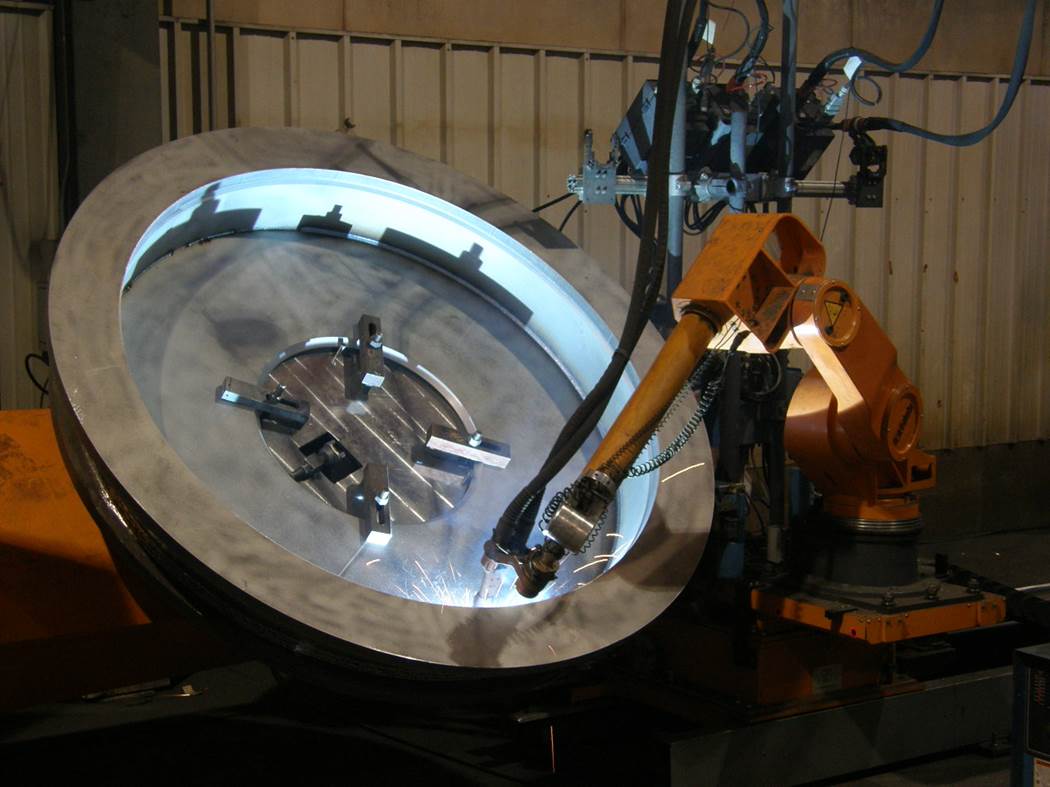

Picture #3 – Robotic Welding Large Steel Winch Component

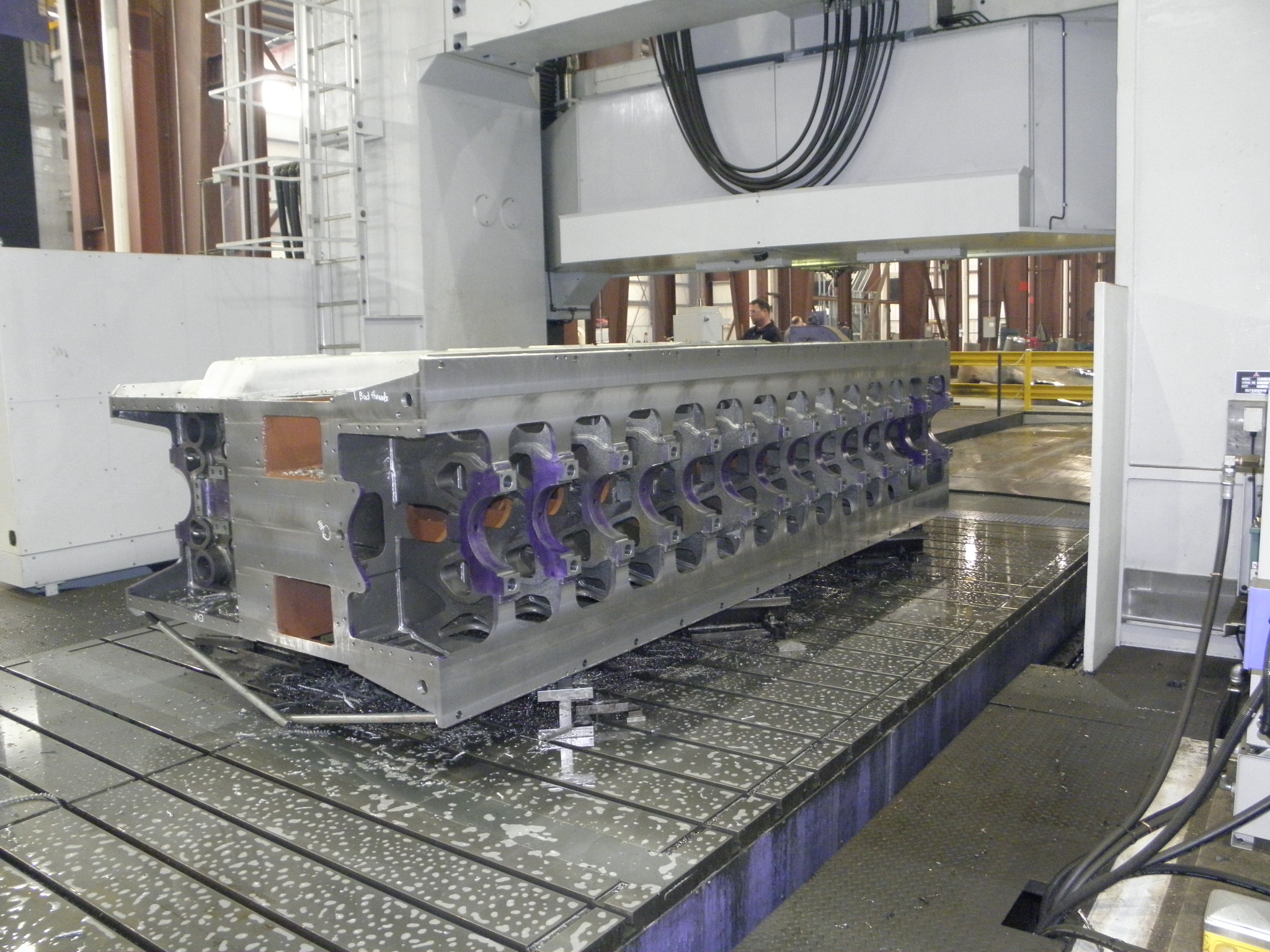

Process Controls for Contract Manufacturers of Large Machining and Large Fabrications - Machining Large Fabricated Engine Block

Picture #4 – Machining Large Fabricated Engine Block

The customer interface areas that require process controls and that are important for this type of business are:

Customer quote request – The contract manufacturer deals with many customers.  Every customer has different specifications and expectations.  It is important that all customer specifications, drawings, and requirements are considered in the quote to the customer.  All the customer documents that are used to prepare the quote must be controlled.  One method to control the documents that are submitted by the customer for quotation is a location on the company server with controlled access specifically for these documents.  Documents are stored by customer name, customer part number and date.  Management of these documents is controlled by a designated person.   The sales function submits all customer documents that are included with the quote request.  As the engineering function works with the customer additional customer documents that are received are submitted to the designate control person for filing.  All documents are available for review of a future purchase order or for discussions with the customer.  Access to all documents is restricted to the people that need the documents to do their work, for example engineers working with the customer on quotations.

Contract manufacturer’s quote to the customer – The quote to the customer includes documentation of what services and materials are included in the offering, FOB point, delivery date, and price.  It also includes any exceptions that are taken to the specifications or requirements that the customer included in the quote request.  Process control for this document can be handled in a similar manner to the customer quote request.  This is an important document for both the customer and the contract manufacturer.  It may be subject to review and discussion at a distant time in the future.

Purchase order – This is the point in the process where there is a contractual commitment by the customer to purchase and the contract manufacturer to deliver.  Control of this document is critical.  It may be received through EDI (Electronic Data Interface), FAX, mail, or email.  One method for process control utilizes a designated person to review the purchase orders for completeness and then entry into the order release system.  The designated person compares the purchase order to the quotation to make sure that price, delivery, part number, revision level, quantity, and other requirements match.  If there are any differences between the quote and the purchase order they are resolved with the customer prior to order entry.  If there are no differences the purchase order is entered into the ERP (Enterprise Resource Planning), MRP (Material Resource Planning) or other system.

Customer drawings and specifications – Now that a purchase order is accepted and entered into the manufacturing system the control of customer documents becomes even more important.  The part will be manufactured now and any mistakes made by using the incorrect document can result in costly mistakes.  The contract manufacturer must use information from many customers.  Each customer has their own print and specification naming convention.  The contract manufacturer’s systems must incorporate the diverse naming conventions into a standard convention that all employees can use and understand.  ERP and MRP systems utilize a database system.  Oracle is an example of a database that is used by ERP and MRP systems.  The database of the ERP or MRP system is used to store and control customer information.  The ERP/MRP system database can be expanded or connected to other databases used to control all customer documents.  This link will give more information on using an Oracle database in conjunction with an ERP system.  The data entry function is the process control point for entering customer and other documents into the ERP system.  This person is identified in the quality system documentation.  Each item entered into the database has access privileges defined.  For example manufacturing engineers may be given access to look at obsolete revision levels of drawings, but manufacturing operators and supervisors may be only able to read the current revision level of a print.  Only the designated document control person and alternate are given access to add and delete documents from the system.  Picture # 5 shows an interface for an Oracle database that is integrated into an ERP system.  Customer name and part numbers have been covered.  The “Customer Drawings” section is highlighted on the left.  Customer drawing numbers are listed on the right.  The drawing is opened when the drawing number is selected.  You can see the selection of documents on the left hand side that are stored and controlled in this database.  Every important document for manufacturing is stored, controlled and accessed from this database, which is available to all employees from CEO to machine operator.  Each person has access privileges appropriate for their job function.

Process Controls for Contract Manufacturers of Large Machining and Large Fabrications - Interface for Oracle Database

Picture #5 – Interface for Oracle Database

Using this Oracle database integrated with an ERP system, documents are received from the customer and entered by the authorized person and become immediately available by everyone in the contract manufacturing company with authorized access.  Only the latest revision level is available for manufacturing on the shop floor. This database can be accessed from desktop computers in the office and tablet computers on the shop floor.

If you are working with a contract manufacturer of large machining and large fabrications you trust the contract manufacturer to provide a quality product, delivered on time, to your requirements.  An important part of the job of the contract manufacturer is to control all of the drawings, specifications, and other documents that define your expectations.  The process controls that the contract manufacturer has in place are critical to the fulfillment of your expectations.

Back to the Large Machining Article Index


Large Machining of Large Bores – Machining, Measurement, Data Collection, Traceability and Data Retention

Large Fabrications and large castings often require machining of large bores.  The large machining contract supplier must have machines, tools, gages, processes and data collection systems in place to machine close tolerance large bores to the customer’s requirement.

Large bores can be machined on a horizontal boring mill or on a vertical gantry mill.  There is often a relatively large amount of stock removal on a large bore in a large casting or large fabrication.  Compared to the location and diameter tolerances on the final machining operation the casting and fabrication location tolerances are large.  A rough machining operation to reduce the amount of stock left for finish machining is required.  Any operations that are required around the bore like face milling, drilling and tapping are performed before the finish bore operation.  Any distortion of the part that will occur from these operations will occur before the finish bore is machined.  These practices are common for all large machining suppliers.  Picture # 1 shows rough machining of a 19.5 inch diameter bore with a milling cutter on a large vertical gantry machine.  Picture # 2 shows drilling of bolt holes around the bore.

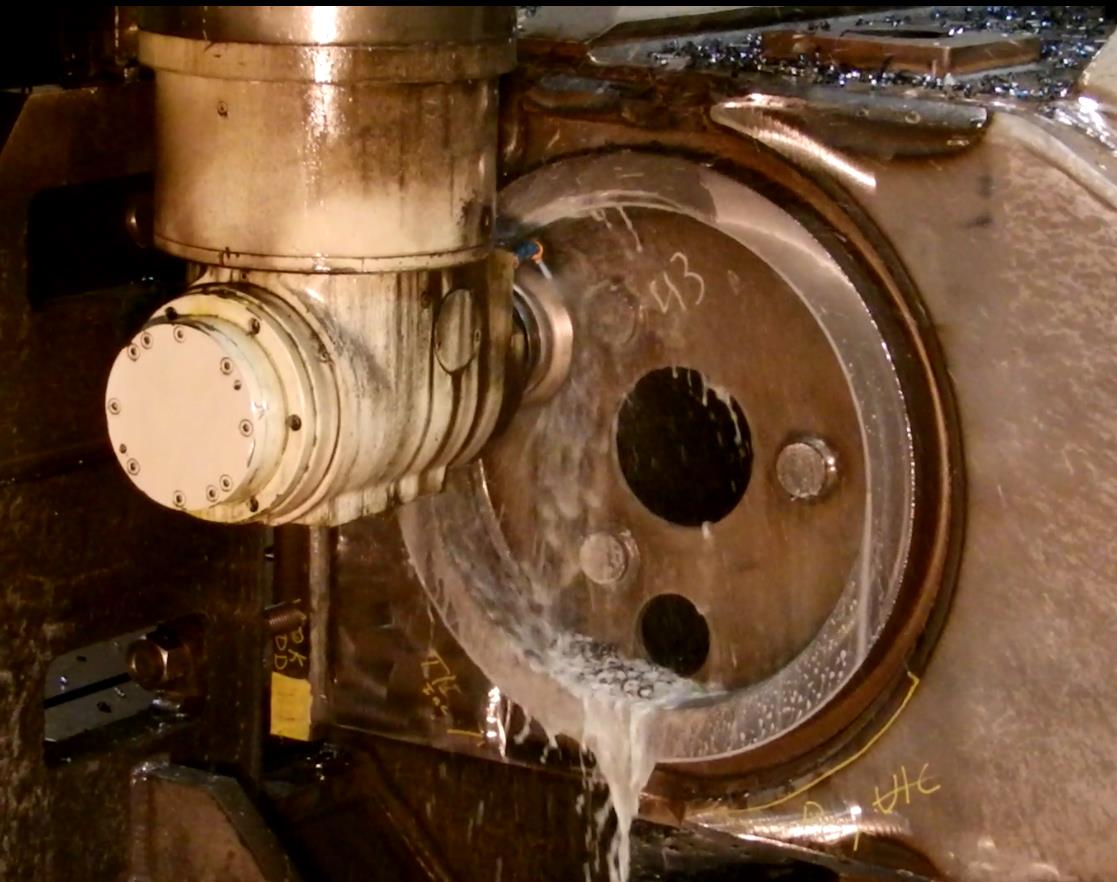

Machining Large Bores - Rough Machining the Bore

Picture #1 – Rough Machining the Bore

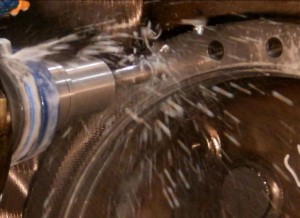

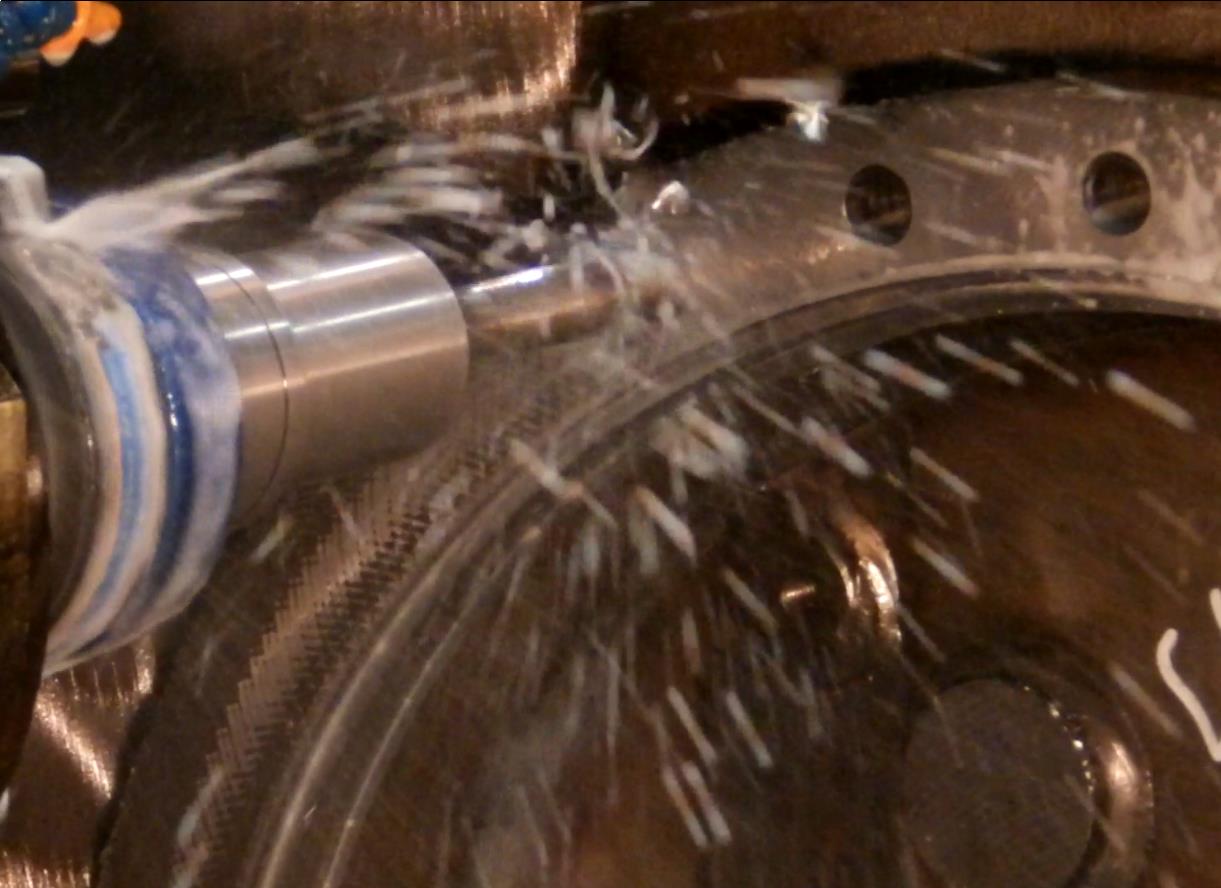

Machining Large Bores - Drilling Bolt Holes Around the Bore

Picture #2 – Drilling Bolt Holes Around the Bore

Large machining suppliers will standardize on one or more tools for large boring operations.  Big Kaiser is one supplier of large boring tools.  These tools are modular and can be setup for a range of bore sizes.  Increments of adjustment on the boring heads are typically 0.0005 inches.  Fine adjustment of the boring tool is possible even for large bore sizes.  Picture # 3 shows the boring tool, picture # 4 is the boring head.  Picture # 5 shows the boring operation in process on the large vertical gantry machine.

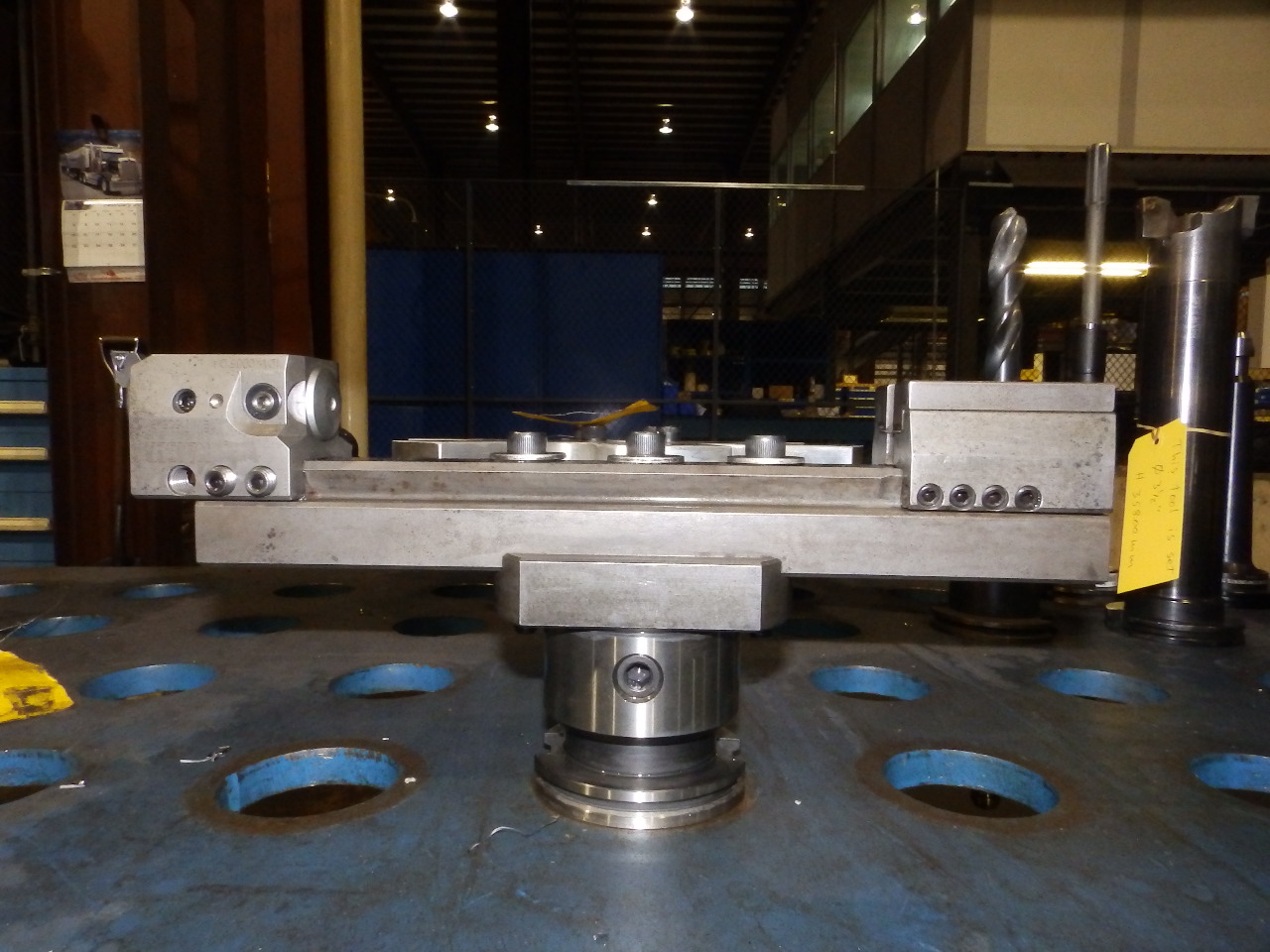

Machining Large Bores - Boring Tool

Picture #3 – Boring Tool

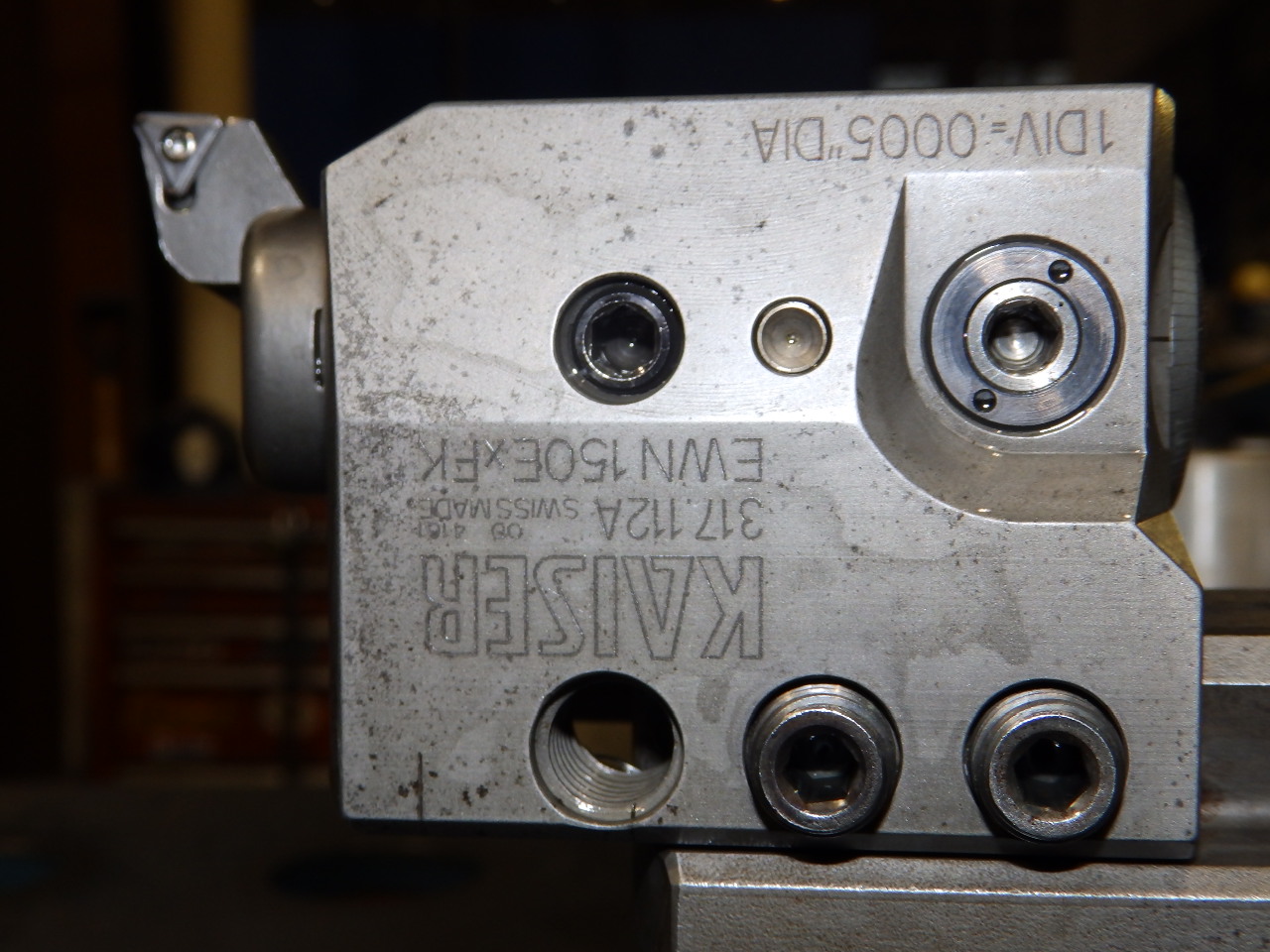

Machining Large Bores - Boring Head

Picture #4 – Boring Head

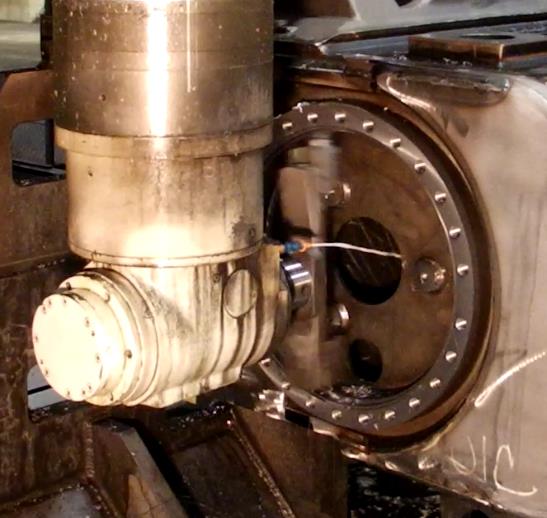

Machining Large Bores - Boring Operation on Large Vertical Gantry Machine

Picture #5 – Boring Operation on Large Vertical Gantry Machine

Large bores must be measured accurately to verify the bore diameter meets the customer requirement.  Lot sizes are often small (frequently one) in the large machining industry.  Gages must be flexible and accurate.  ID mics (Internal Diameter Micrometers) are often used to measure bore diameters.  These gages are calibrated to a standard in the plant which is traceable to a national or international standard.  The ID mic in use to measure the bore is shown in picture # 6.  Picture # 7 is a closer shot of the ID mic.  The calibration sticker which shows the due date for the next calibration of the ID mic is shown in picture # 8.  The calibration due date is 03/06/15; the date of the picture is 02/09/15.

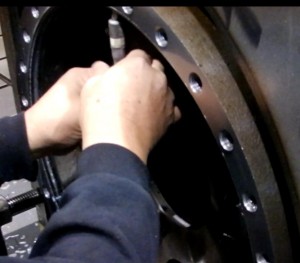

Machining Large Bores - ID Mic in Use

Picture #6 – ID Mic in Use

Machining Large Bores - ID Mic

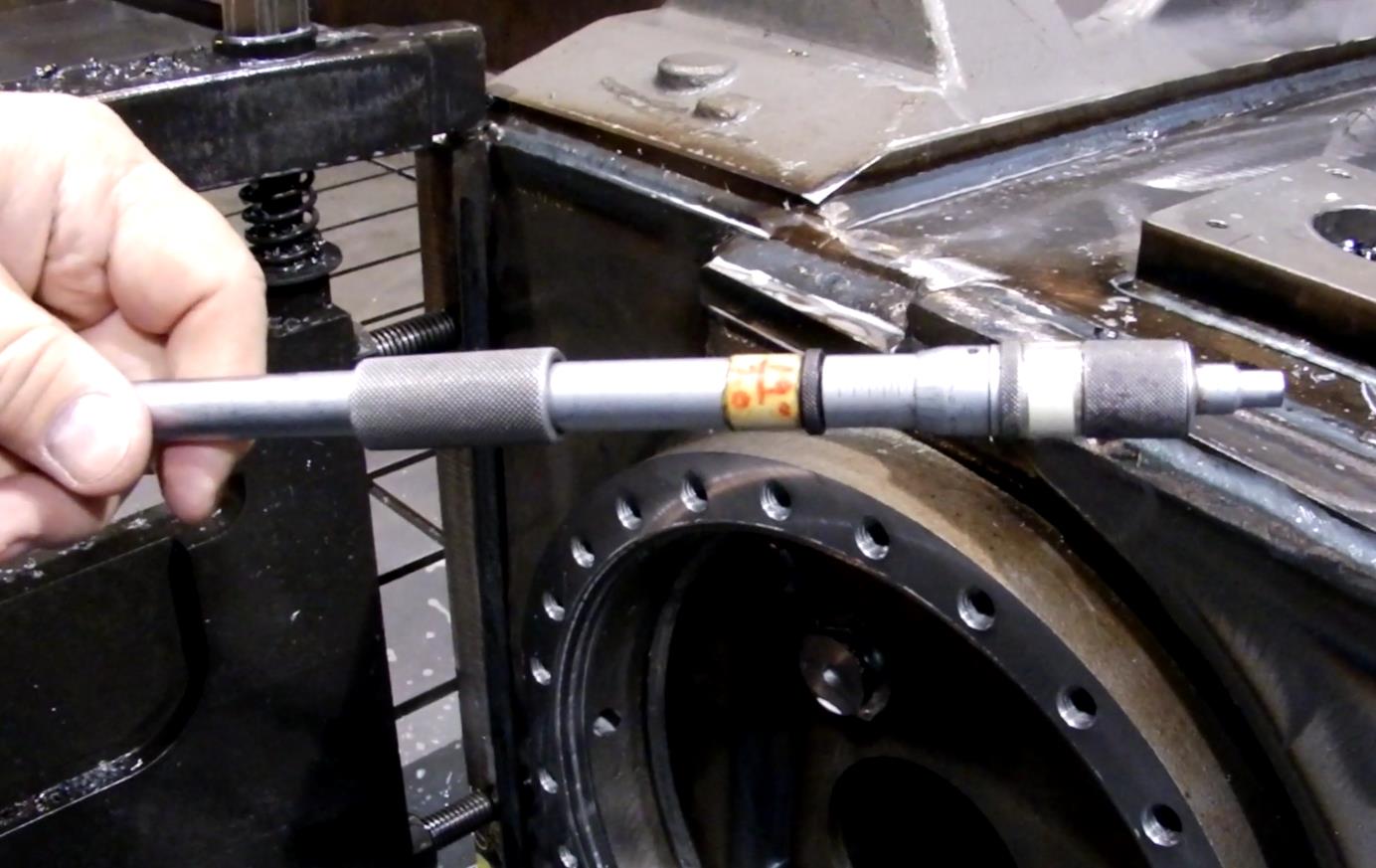

Picture #7 – ID Mic

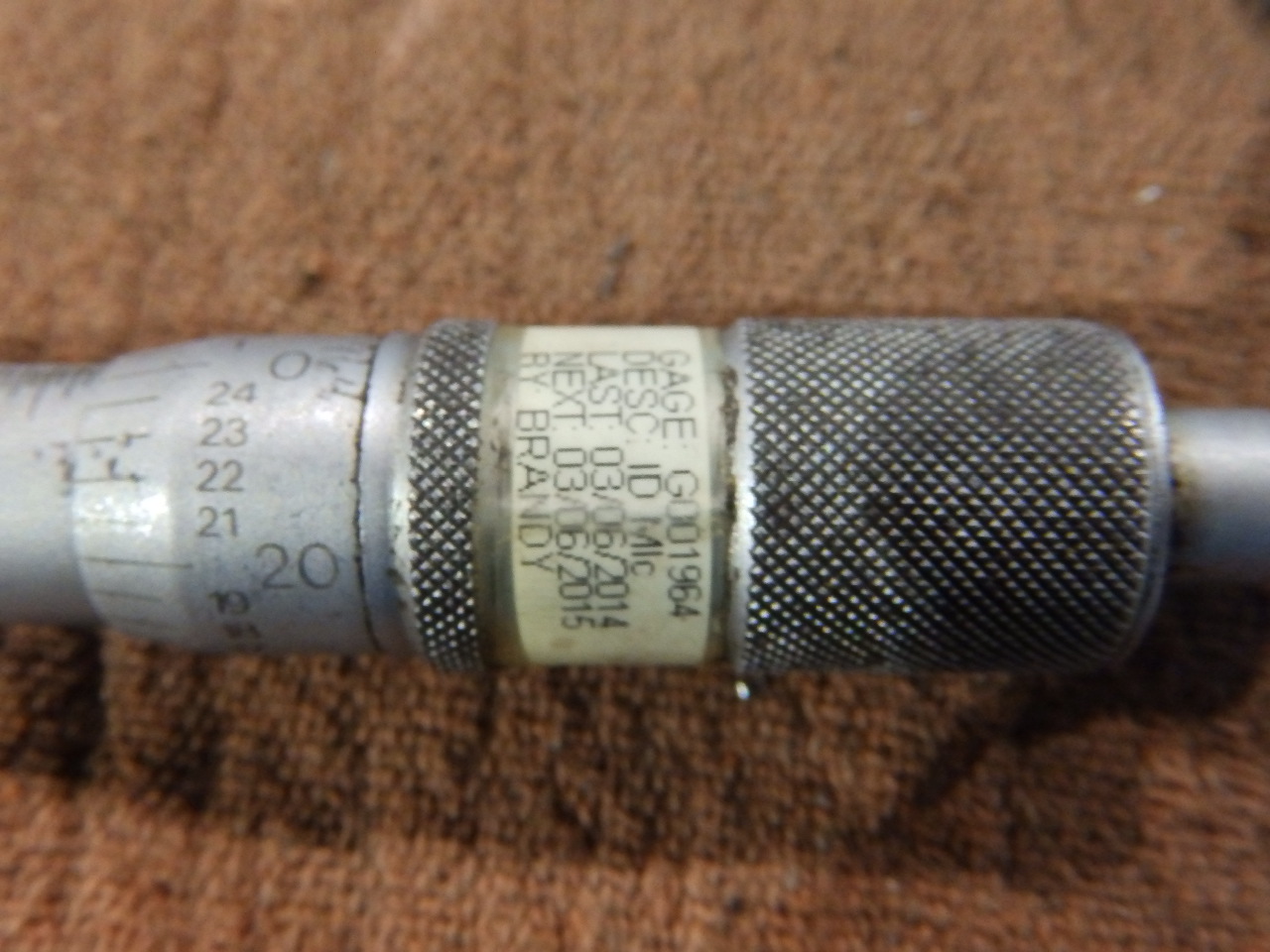

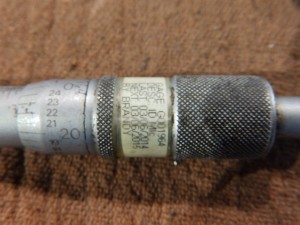

Machining Large Bores - Calibration Sticker on ID Mic

Picture #8 – Calibration Sticker on ID Mic

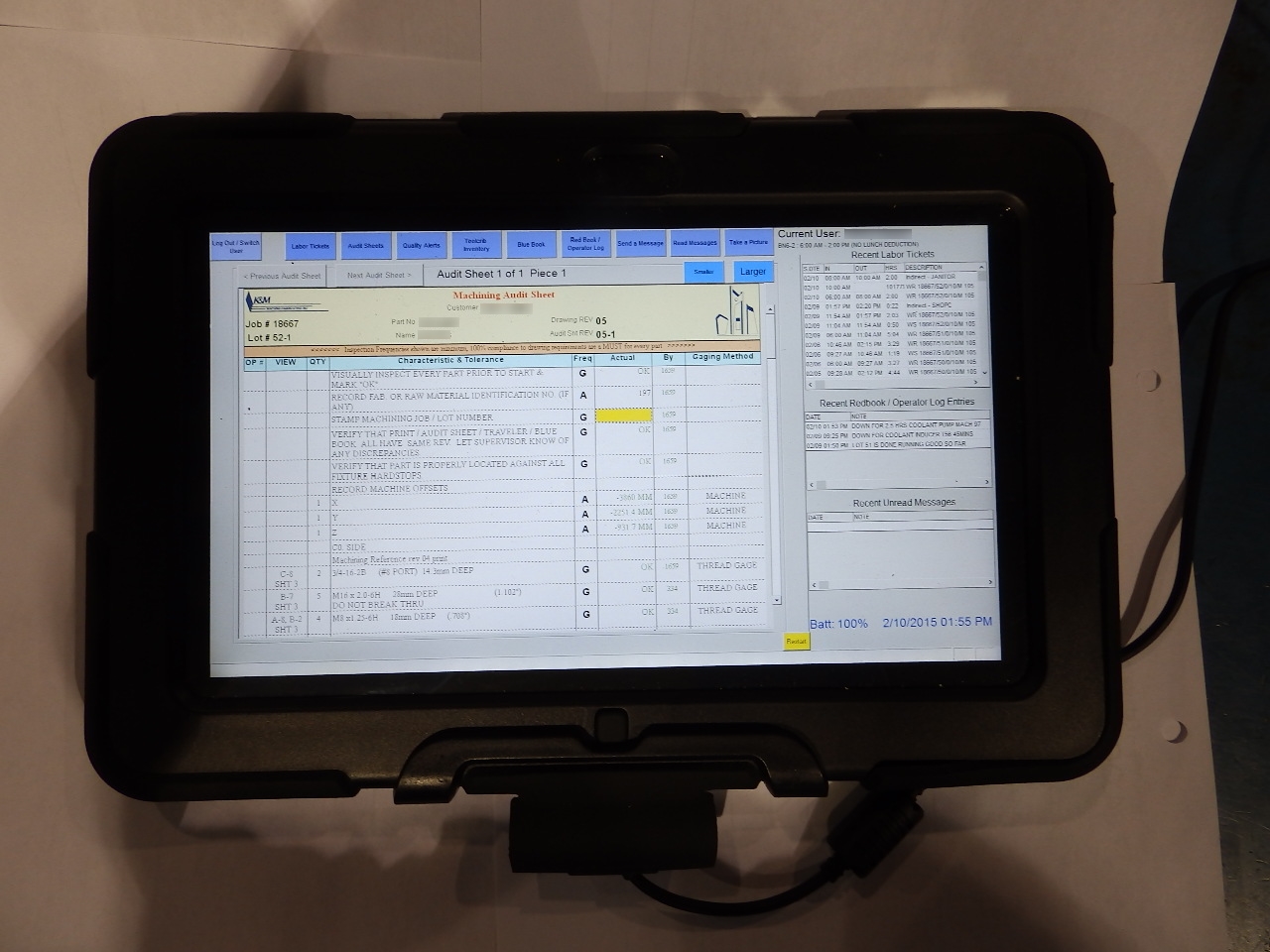

Machining Large Bores - Tablet Computer for Shop Floor Data Collection

Picture #9 – Tablet Computer for Shop Floor Data Collection

The traceability of the measurement of each large bore diameter to a specific part is desirable and may be required by the customer.  The data collection of the bore diameter by the machinist using a gage traceable to a national or international standard, and retention of that data traceable to a specific part serial number by the large machining supplier is a valuable service.  Electronic data collection on the shop floor is a cost effective method to capture gage readings and link the data to the specific part.  Picture # 9 shows a table computer used on the shop floor by the machinist to record bore diameters and other measurements.  This data becomes part of the supplier’s quality information that is tied to the ERP (Enterprise Resource Planning) system.  This data can be retrieved in the future based on the serial number of the part that was machined.  There may be a need for this information after the part has been in the field for years.  A good measurement, data collection, and storage system at the large machining supplier is valuable to the supplier, the customer, and the end user of the product.  A video of this boring operation is available below.

Back to the Large Machining Article Index


How Large Is Large? Survey of Large CNC Machining In Michigan

Are you a buyer of large CNC machining capacity in the state of Michigan?  Do you need to know the quantity and size of large CNC machines that are available for outsourcing in the state of Michigan?  Research on the top companies in Michigan as ranked by a Google search for Large Machining Michigan and Large CNC Machining Michigan on February 10, 2015 was completed.  The results are presented in this report.

Summary:

  1. Large is a relative term. Companies classified horizontal machines with a size capacity ranging from 0.7 cubic meters to 312 cubic meters of capacity as large.
  2. Only two companies in Michigan advertise large horizontal machines with over 60 cubic meters of capacity. Of the 6 machines that are advertised in Michigan over 60 cubic meters in capacity, 5 of the 6 are at one company.
  3. Only four companies in Michigan advertise large vertical machines with 80 cubic meters or larger capacity. Three of these companies have only one machine each in this size category.       One company has 6 of the 10 machines that are advertised in this size category.
  4. The company that has the largest number of the largest size horizontal machines in Michigan is the same company that has the largest number of the largest size vertical machines in Michigan. This company is K&M Machine-Fabricating Inc., located in south-west Michigan.

Survey method:

A Google search on Large Machining Michigan and Large CNC Machining Michigan was done on February 10, 2015.  The fourteen top ranked companies that offered large machining capacity and that listed the size and number of machines on their website were included in this survey.  If the company website offered large machining or large CNC machining but did not list the machine sizes they were not included in the survey.  If the company website listed only their largest machine they were included in the survey, but only as one machine of this size.  This is not an all-encompassing survey of large machining in Michigan, but it is the best that could be done using information published on company websites.  Companies that have large machining capacity but use this capacity for their own internal work were not included in the survey.  This survey is focused on large machining capacity in the state of Michigan that is available for subcontract work.

The cubic meters of size capacity of each machine reported on a company website was calculated.  Formula # 1 shows the formula that was used to calculate the size capacity of each machine in cubic meters.  For purposes of this survey machines were placed into groups by size.   The smallest machines are in the 10 cubic meter size capacity group.  All machines described on a company website that had a size capacity less than or equal to 10 cubic meters were put into this group.  The next size group is 20 cubic meters.  All machines that have a capacity greater than 10 cubic meters but less than or equal to 20 cubic meters were put into the 20 cubic meter group.  Size groups were incremented by 10 cubic meters.

Cubic Meters Capacity = (X axis travel meters) X ( Y axis travel meters) X (Z axis travel + W axis travel meters)
Formula #1 – Cubic Meters Machine Capacity

The survey breaks the available machines into two types; horizontal machines and vertical machines.  The horizontal machine type includes horizontal machining centers, horizontal boring mills and horizontal jig mills.  The vertical machine type includes vertical machining centers and vertical gantry mills.

Large Horizontal CNC Machines:

Thirteen companies in the survey reported a total of 87 large horizontal CNC machines on their websites.  The machine size capacity ranged from a low 0.7 cubic meters to a high of 312 cubic meters.  There is a wide range of what is considered large.  Chart #1 is a histogram of the size capacity for the 87 large horizontal CNC machines reported by thirteen Michigan companies in the survey.

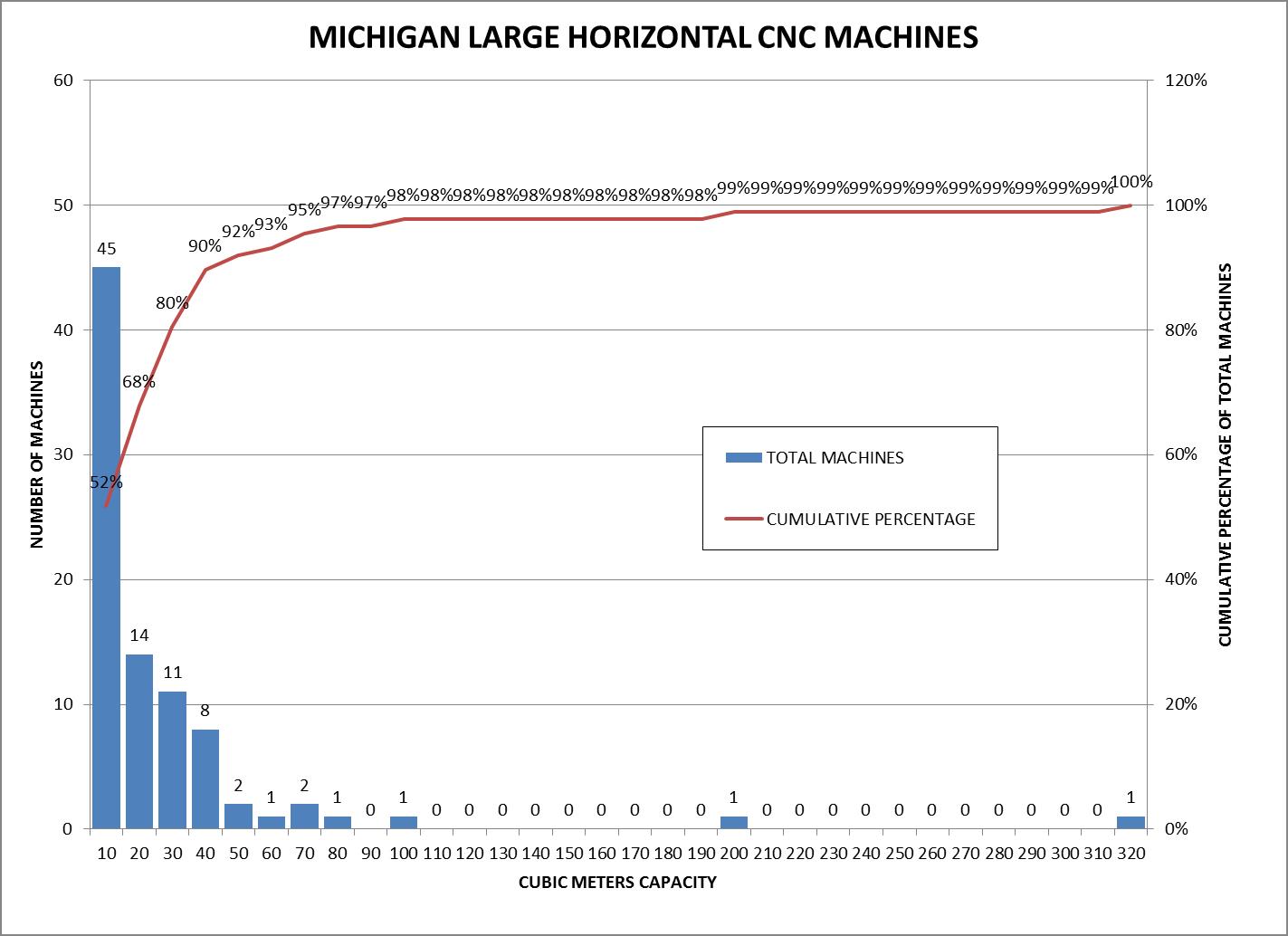

Michigan Large Horizontal CNC Machines Histogram

Chart #1 – Histogram of Large CNC Horizontal Machines

45 of the 87 large horizontal CNC machines in the survey, or 52%, have a size capacity of 10 cubic meters or less.  90 percent of the large horizontal CNCs in the survey have a size capacity of 40 cubic meters or less. Chart # 2 shows the distribution of large horizontal CNC machines in the survey by company.  There are several companies that have machines on the smaller side of the large machine classification.  Only two companies of the thirteen have machines with capacity of 60 cubic meters or larger.  Of the two companies, one company has one machine with capacity of 60 cubic meters or larger.  One company has 5 machines that range in capacity from 70 cubic meters to 320 cubic meters.

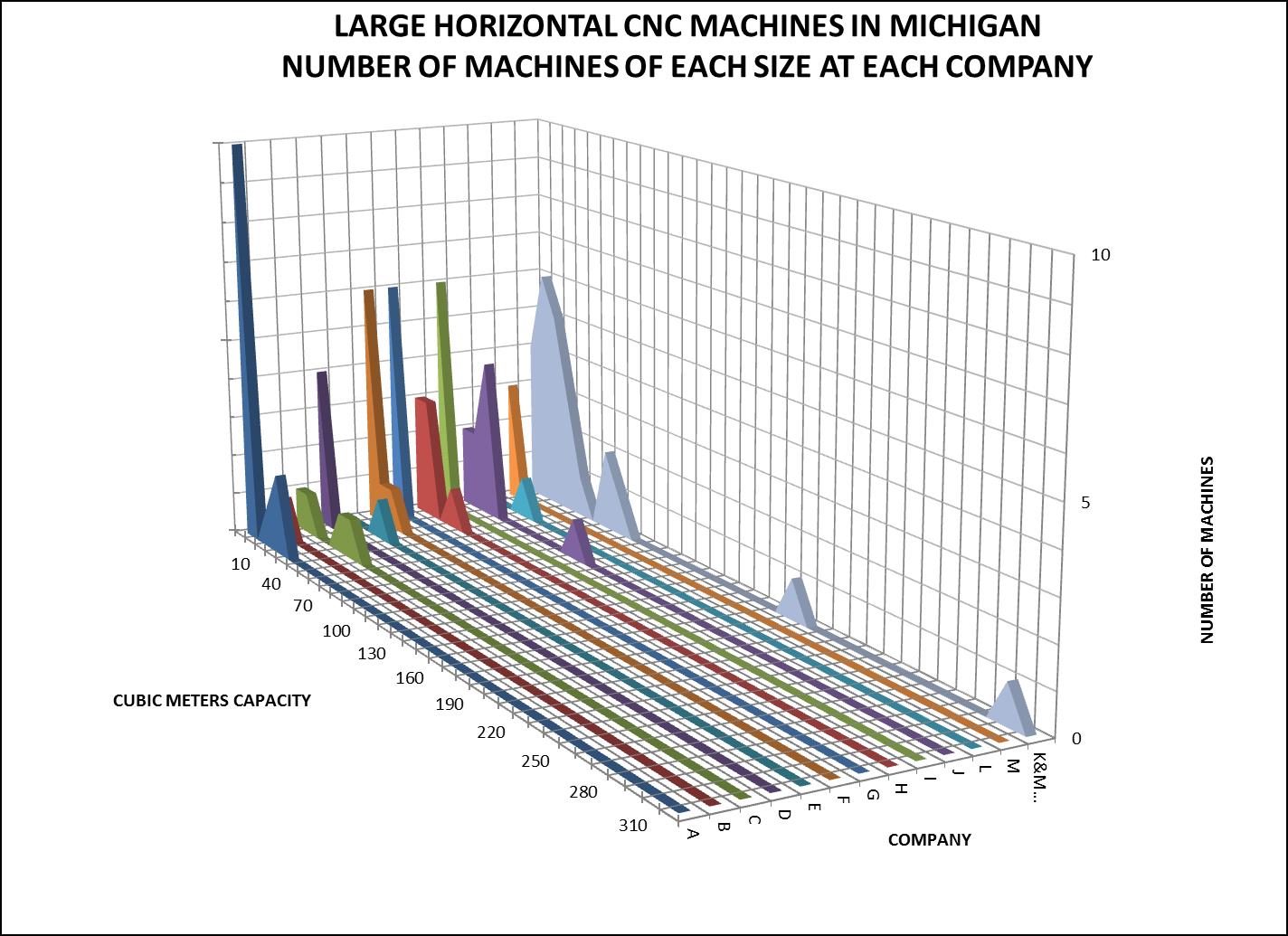

Michigan Large Horizontal CNC Machines by Number of Machines at Each Company

Chart #2 – Distribution of Large Horizontal Machines by Company

Picture # 1 shows a CNC horizontal machining center with a size capacity of 1.8 cubic meters.  This machine is in the smallest size group in the survey, the 10 cubic meter machine size.  Picture #2 shows a CNC horizontal boring machine with a size capacity of 312 cubic meters.  This machine is in the largest size group in the survey, the 320 cubic meter size.

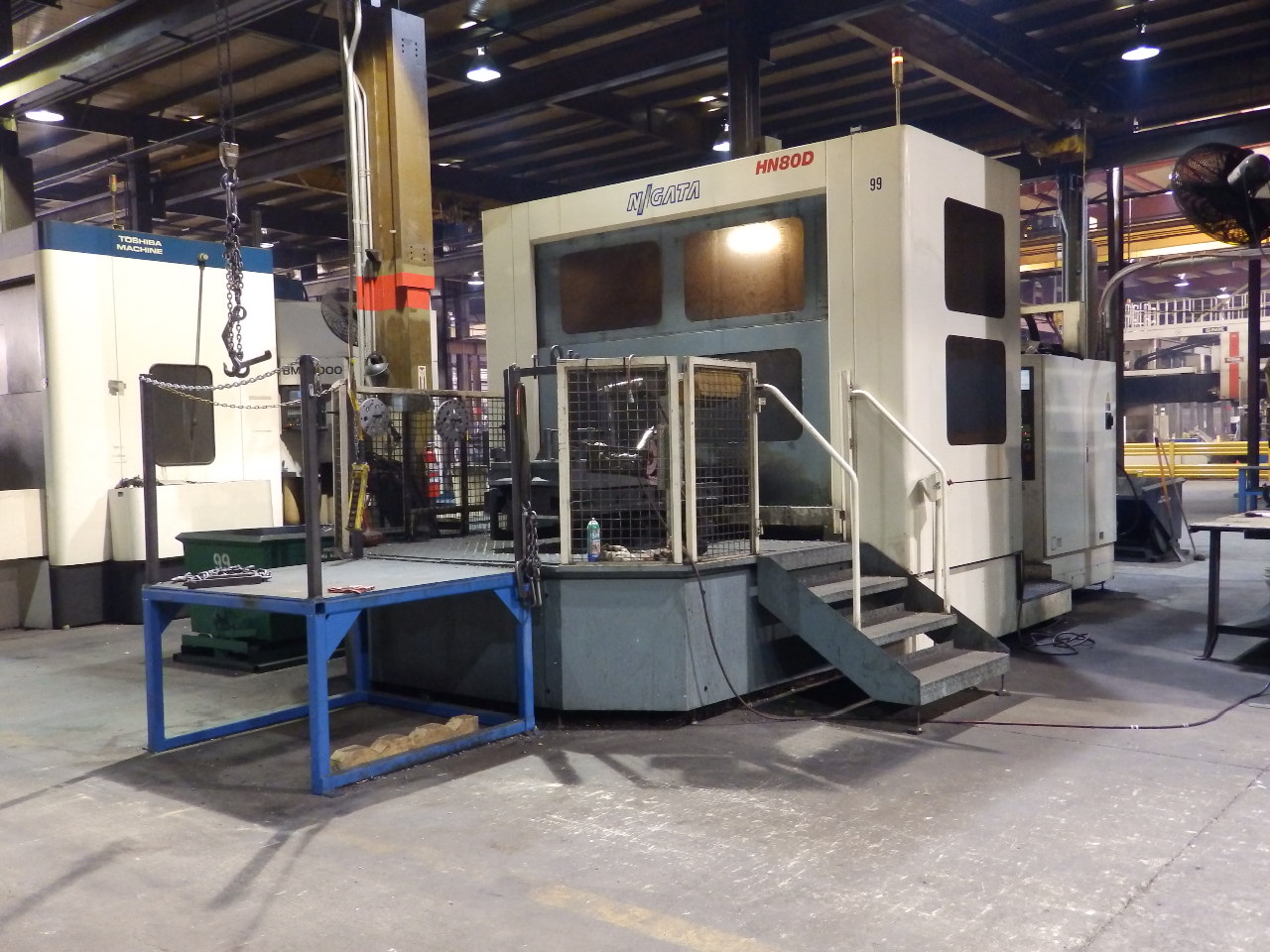

Michigan Large Horizontal CNC Machines 1.8 Cubic Meter Capacity

Picture #1 – 1.8 Cubic Meter Size Capacity Horizontal

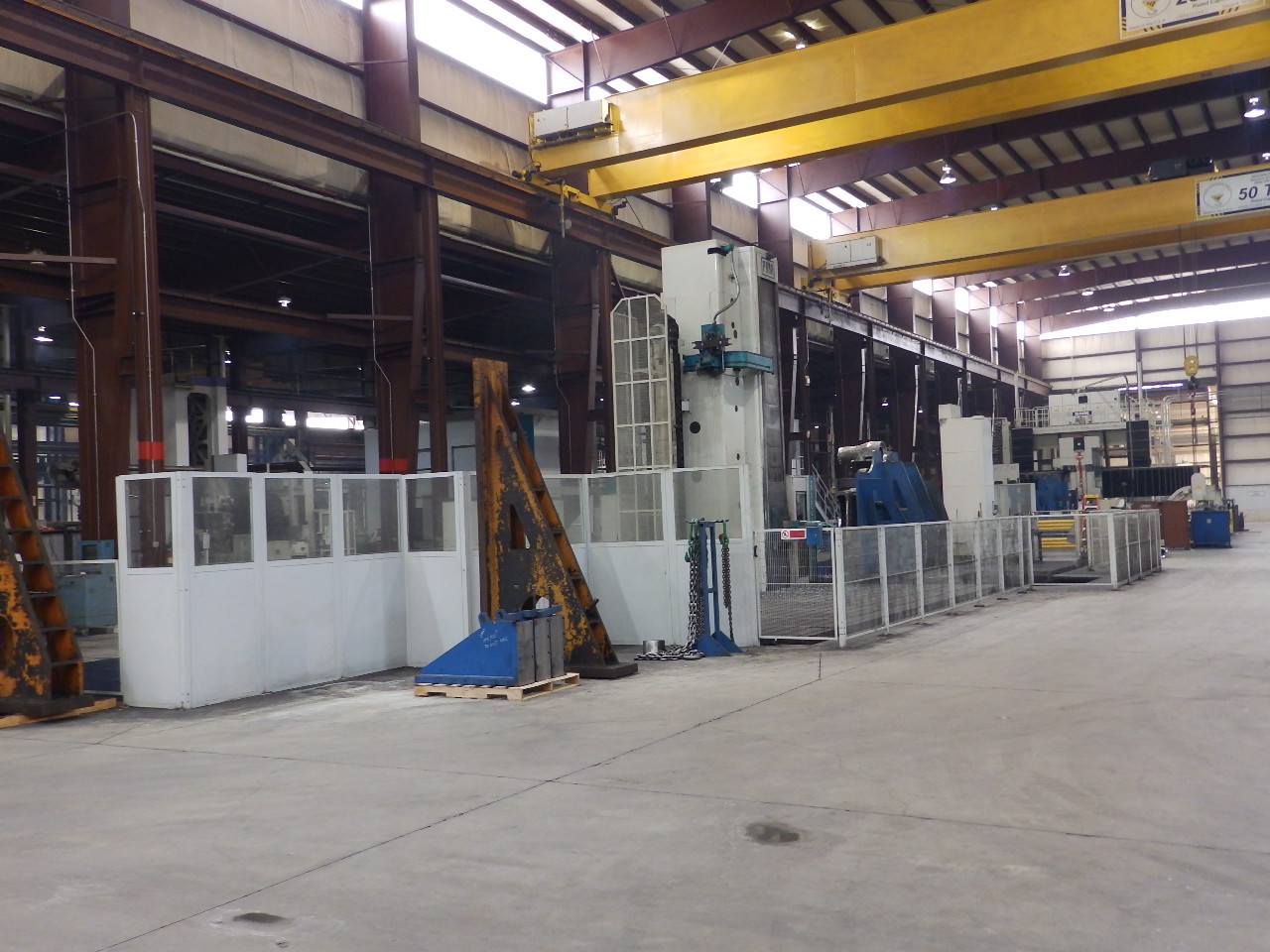

Michigan Large Horizontal CNC Machines 312 Cubic Meter Capacity

Picture #2 – 312 Cubic Meter Size Capacity Horizontal

Large Vertical CNC Machines:

Fourteen companies in the survey reported a total of 71 large vertical CNC machines on their websites.  The machine size capacity ranged from a low of 0.1 cubic meters to a high of 192 cubic meters.  There is a wide range of what is considered large in the vertical CNC machine classification, just like in the horizontal machine classification.  Chart # 3 is a histogram of the size capacity for the 71 large vertical CNC machines reported by fourteen Michigan companies in the survey.

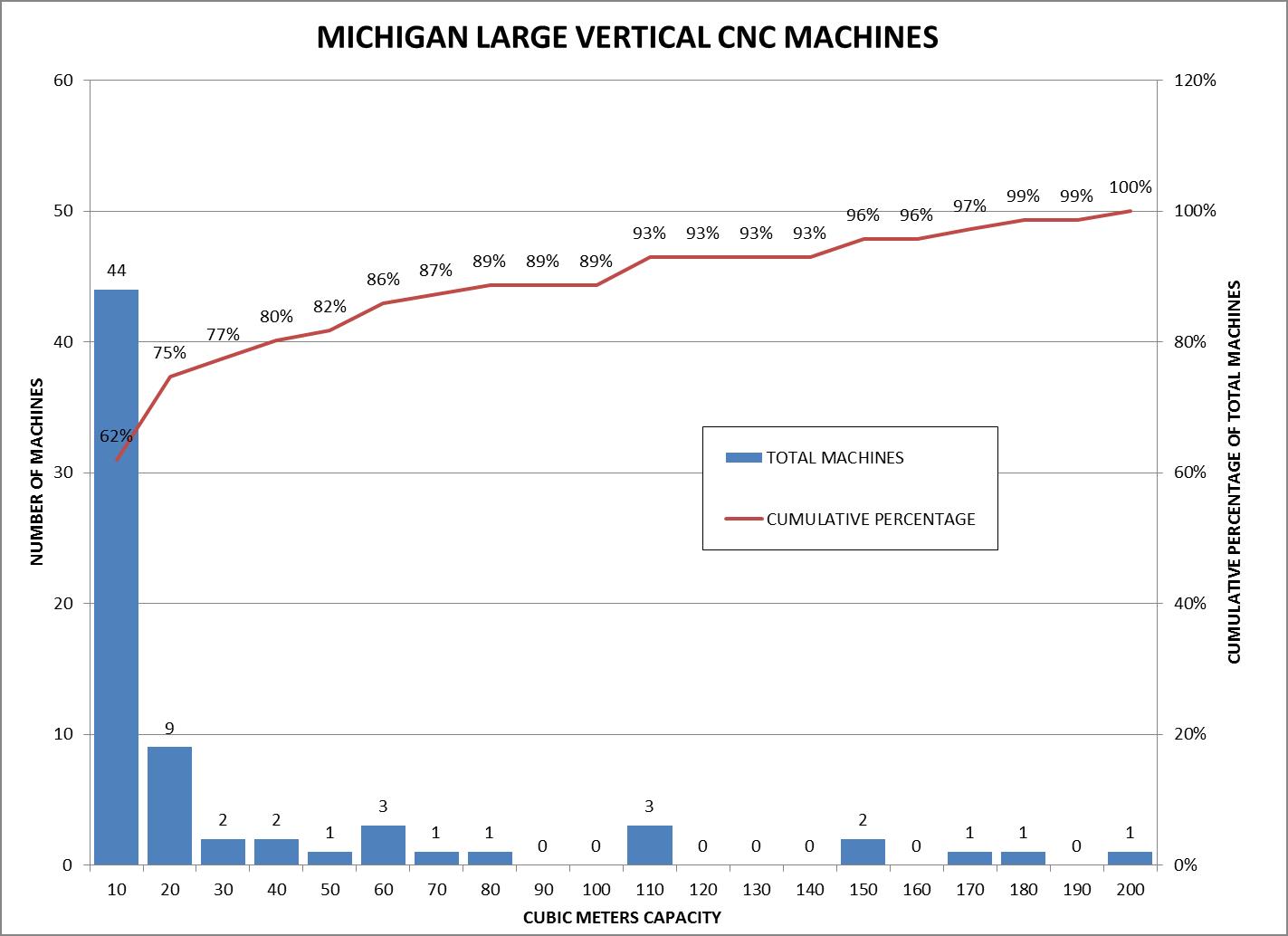

Michigan Large Vertical CNC Machines Histogram

Chart #3 – Histogram of Large CNC Vertical Machines

44 of the 71 large vertical CNC machines in the survey, or 62%, have a size capacity of 10 cubic meters or less.  80 percent of the large vertical CNCs in the survey have a capacity of 40 cubic meters or less. Chart # 4 shows the distribution of large vertical CNC machines in the survey by company.  There are several companies that have machines on the smaller side of the large machine classification.  Only four companies of the fourteen have machines with capacity of 80 cubic meters or larger.  Of the four companies, three companies have one machine each with over 80 cubic meters capacity.  One company has 6 machines that range in size capacity from 110 cubic meters to 178 cubic meters.

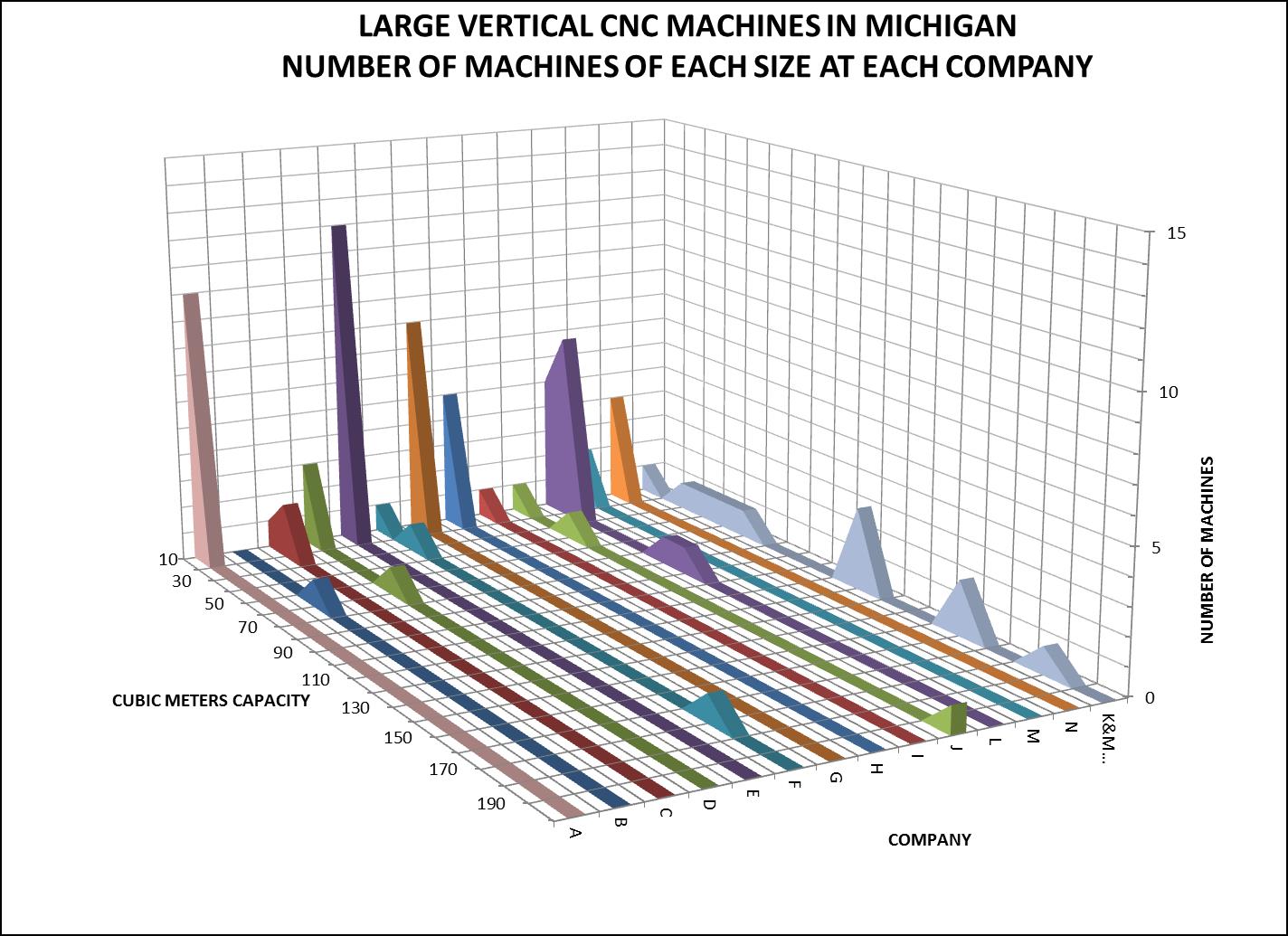

Michigan Large Vertical CNC Machines by Number of Machines at Each Company

Chart #4 – Distribution of Large Vertical Machines by Company

Picture # 3 shows a CNC vertical machining center with a size capacity of 0.8 cubic meters.  This machine is in the smallest size group in the survey, the 10 cubic meter machine size.  Picture #4 shows a CNC vertical gantry machine with a size capacity of 178 cubic meters.  This machine is in 180 cubic meter size group.

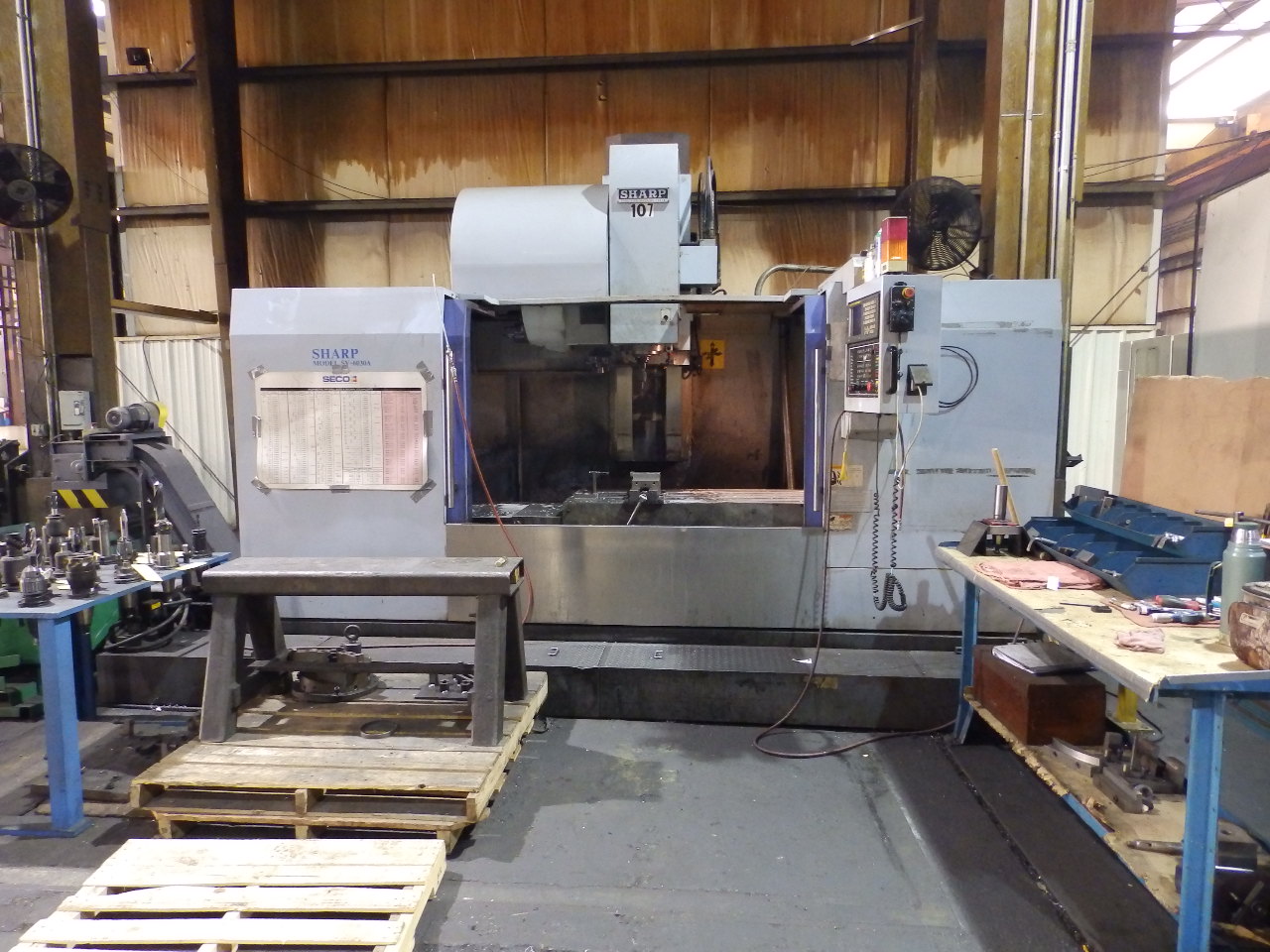

Michigan Large Vertical CNC Machines 0.8 Cubic Meter Capacity

Picture #3 – 0.8 Cubic Meter Size Capacity Vertical

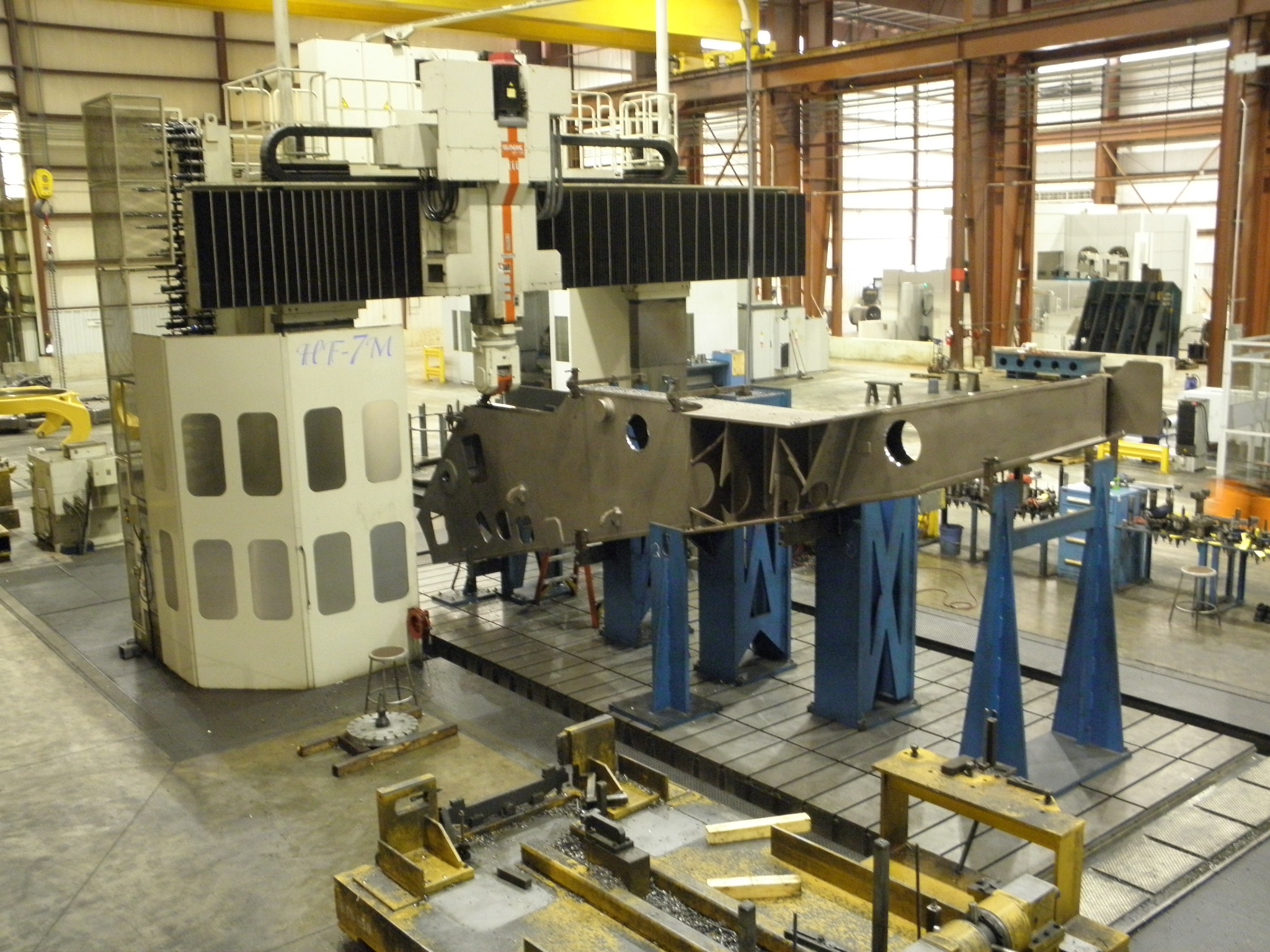

Michigan Large Vertical CNC Machines 178 Cubic Meter Capacity

Picture #4 – 178 Cubic Meter Size Capacity Vertical

This survey shows that as the size of the machining to be outsourced increases, the number of available machines in Michigan is reduced and the number of companies that can handle the work is reduced as well.  There is one company with multiple machines in the larger sizes of both the horizontal type and vertical type.  This company has machines across the entire range of sizes that are considered large.  This company is K&M Machine-Fabricating Inc. located in south-west Michigan.

A survey of large machining capacity across the United States will be conducted and reported in the near future.

Back to the Large Machining Article Index




Visit K&M Machine-Fabricating, Inc. YouTube channel

Follow K&M Machine-Fabricating, Inc. on LinkedIn

Follow K&M Machine-Fabricating, Inc. on Google+

Follow K&M Machine-Fabricating, Inc. on Facebook
